Front Floor Console Holder Replacement

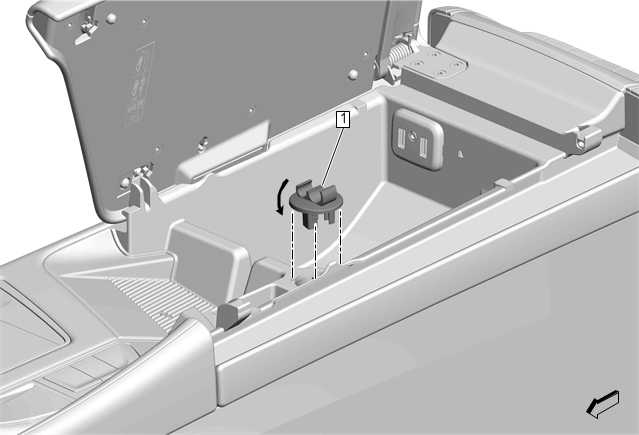

GM4255601Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Floor Console Holder

Procedure

  1. Push down and rotate counterclockwise to remove.
  2. Disconnect the electrical connector.
