Removal Procedure

  1. Front Floor Console Compartment - Remove - Front Floor Console Compartment Replacement
  2. Audio Disc Player and USB Receptacle - Remove - Audio Disc Player and USB Receptacle Replacement

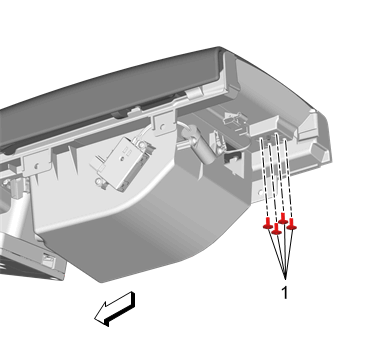

  3. GM4282848Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt (1) - Remove [4x]

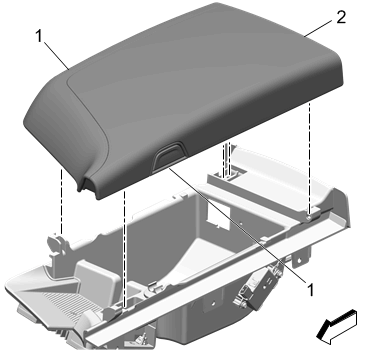

  4. GM4282850Courtesy of GENERAL MOTORS COMPANY

    Push the armrest buttons to release the armrest. (1)

  5. Front Floor Console Armrest (2) - Remove
  6. Transfer components as necessary.
