Front Floor Console Applique Replacement

Courtesy of GENERAL MOTORS COMPANY

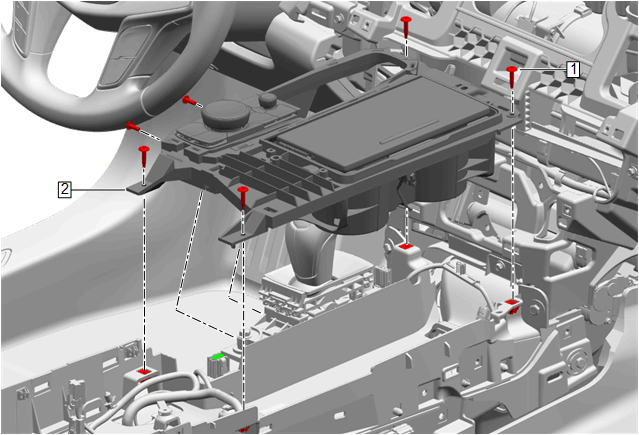

Callout	Component Name
Preliminary Procedure Front Floor Console Upper Panel Replacement
1	Front Floor Console Bolt [6x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Floor Console Applique Procedure Disconnect the electrical connectors. Transfer components as necessary.

Callout

Component Name

Front Floor Console Bolt [6x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Front Floor Console Applique

Procedure
