Home >> Cadillac >> 2020 >> CT6 V >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Displays And Gauges >> Wiring Schematic Diagrams >> Instrument Cluster Wiring Schematics >> Power, Ground, Serial Data, and Subsystem References

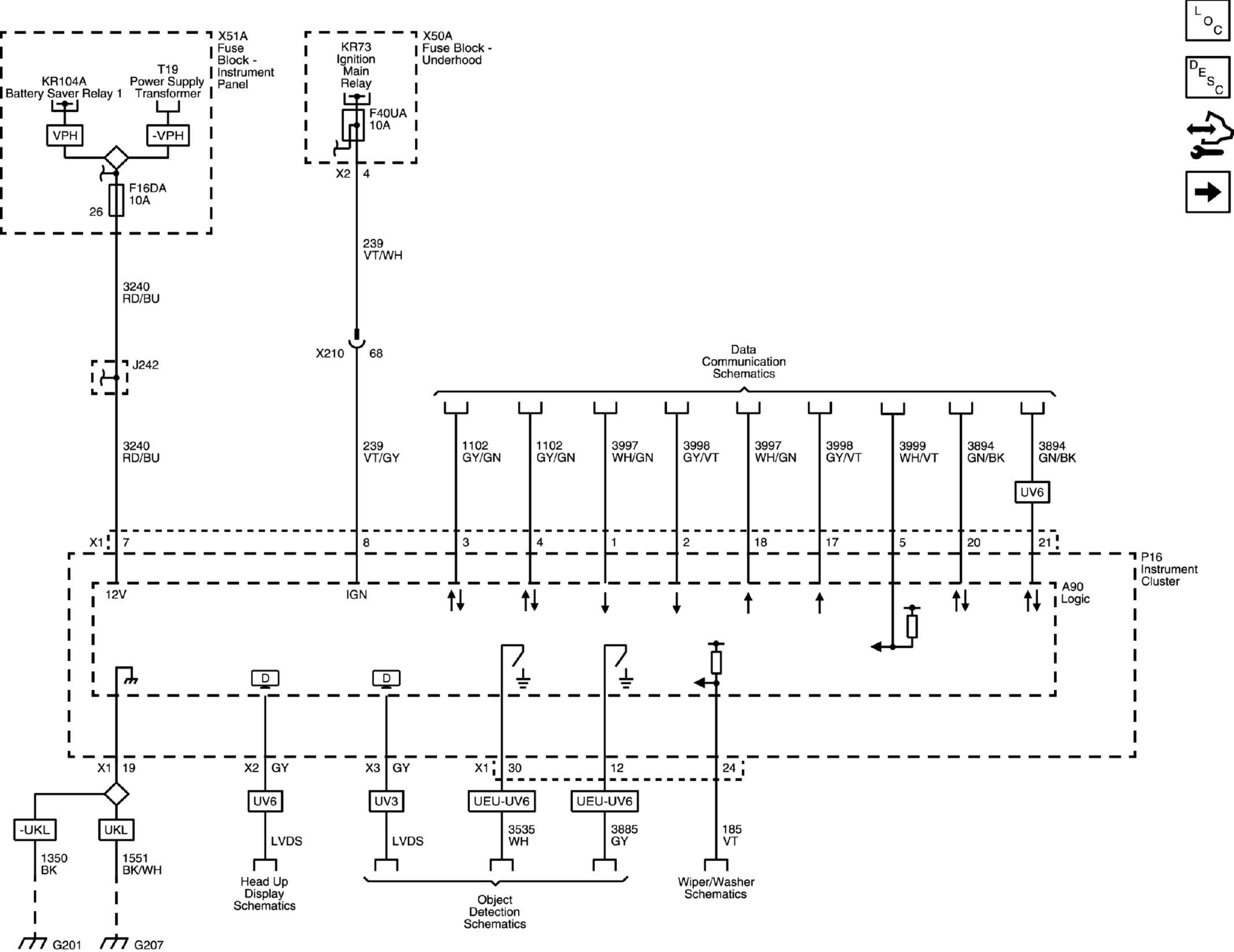

Power, Ground, Serial Data, and Subsystem References

GM5362911
