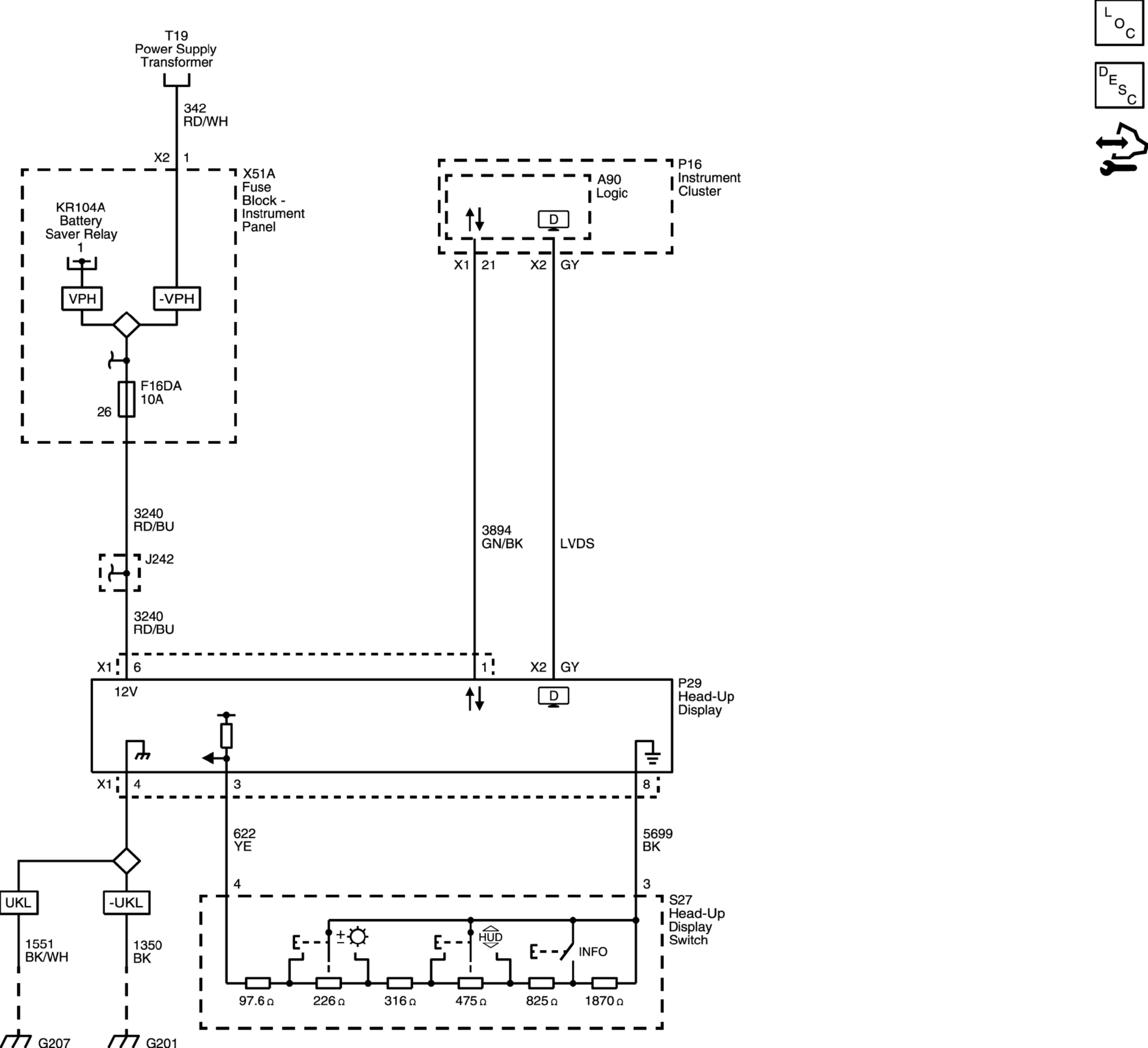

Home >> Cadillac >> 2020 >> CT6 V >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Displays And Gauges >> Wiring Schematic Diagrams >> Head-Up Display Wiring Schematics >> Head-Up Display (UV6)
