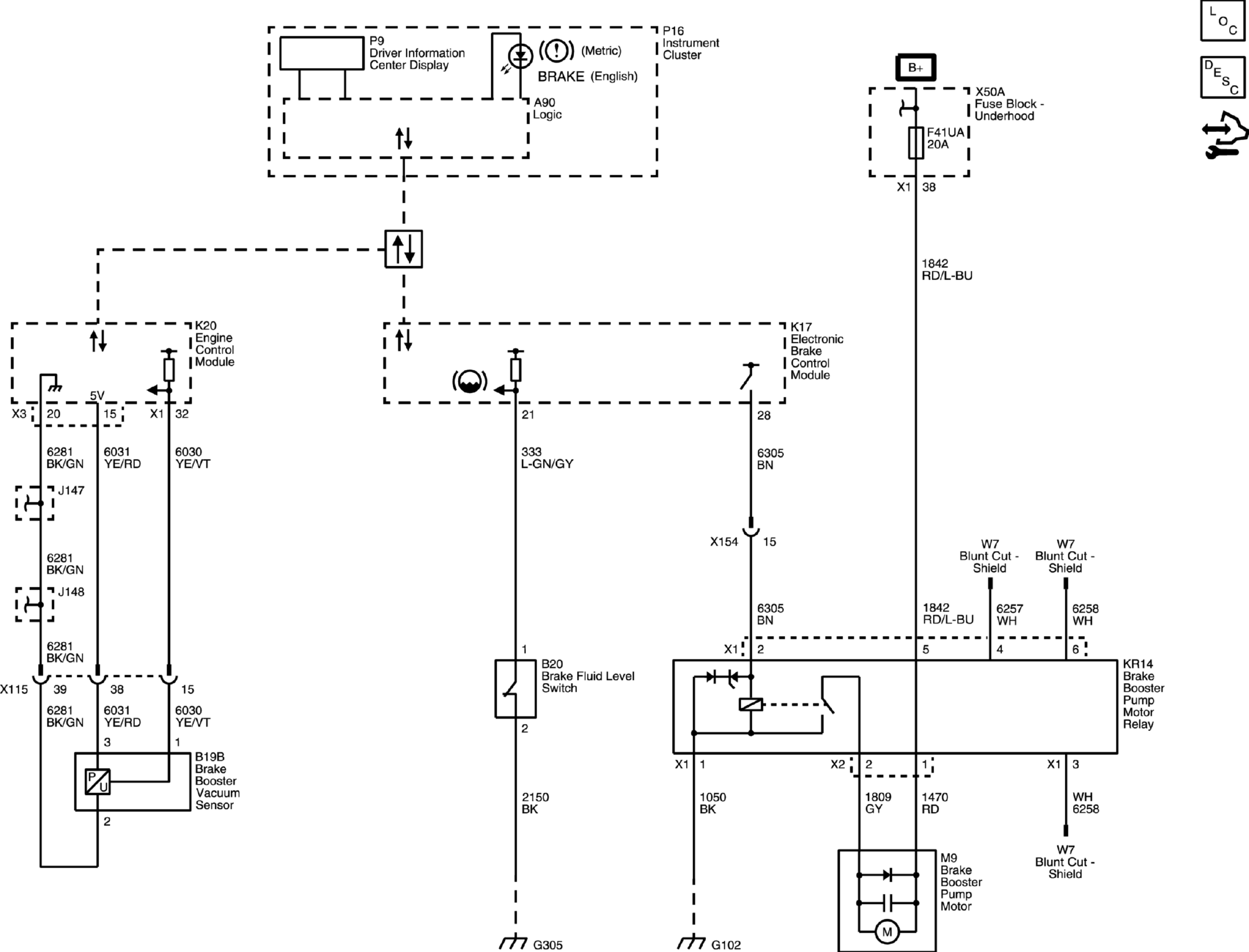

Home >> Cadillac >> 2019 >> XTS Platinum, AWD >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Hydraulic Brakes >> Schematic and Wiring Diagrams >> Hydraulic Brake Wiring Schematics >> Hydraulic Brake (CZ2)
