Installation Procedure

  1. Install the power brake booster vacuum pipe to the vehicle.

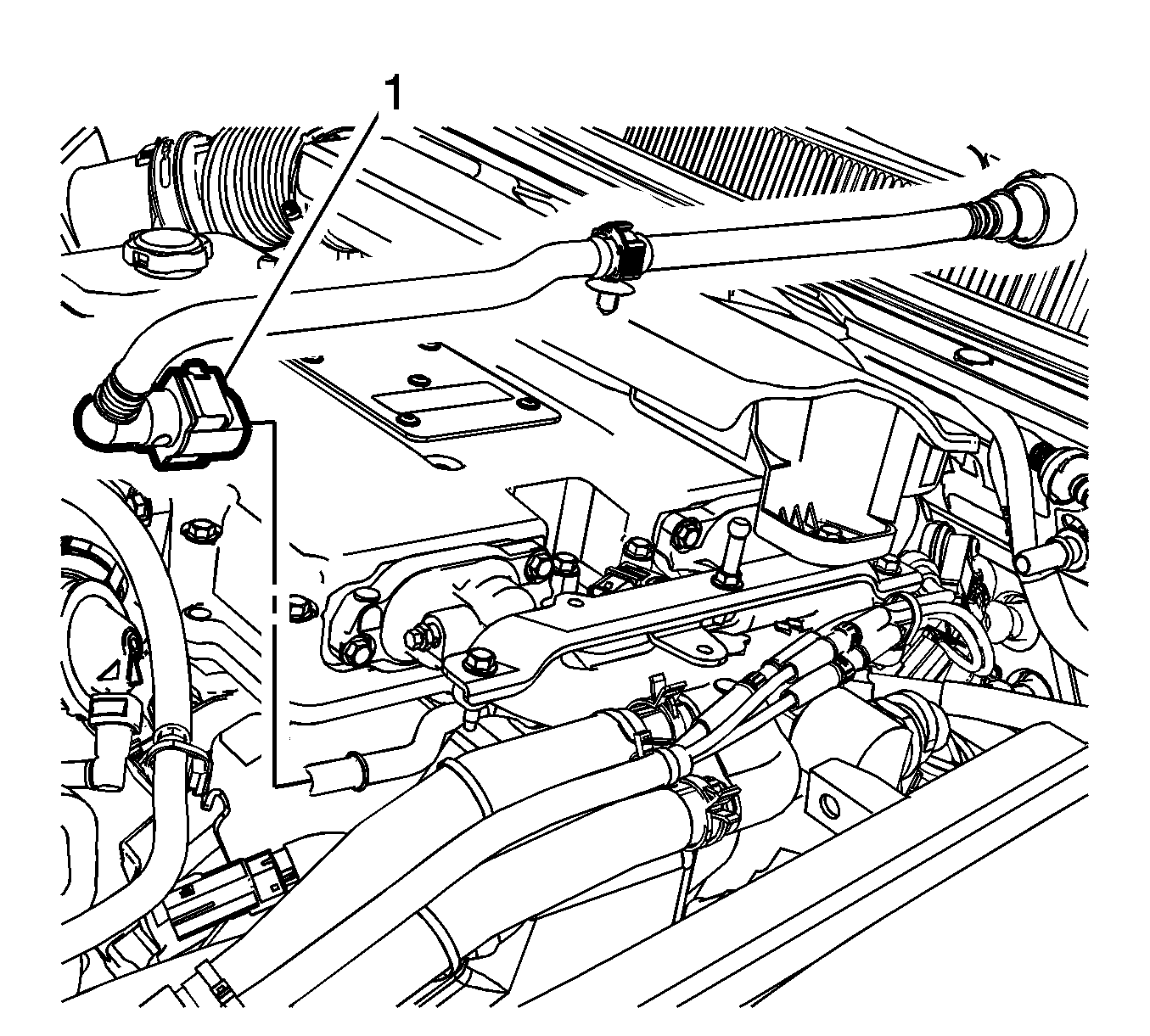

  2. GM3291346Courtesy of GENERAL MOTORS COMPANY

    Connect the power brake booster vacuum pipe quick connect (1) to the intake manifold vacuum port.

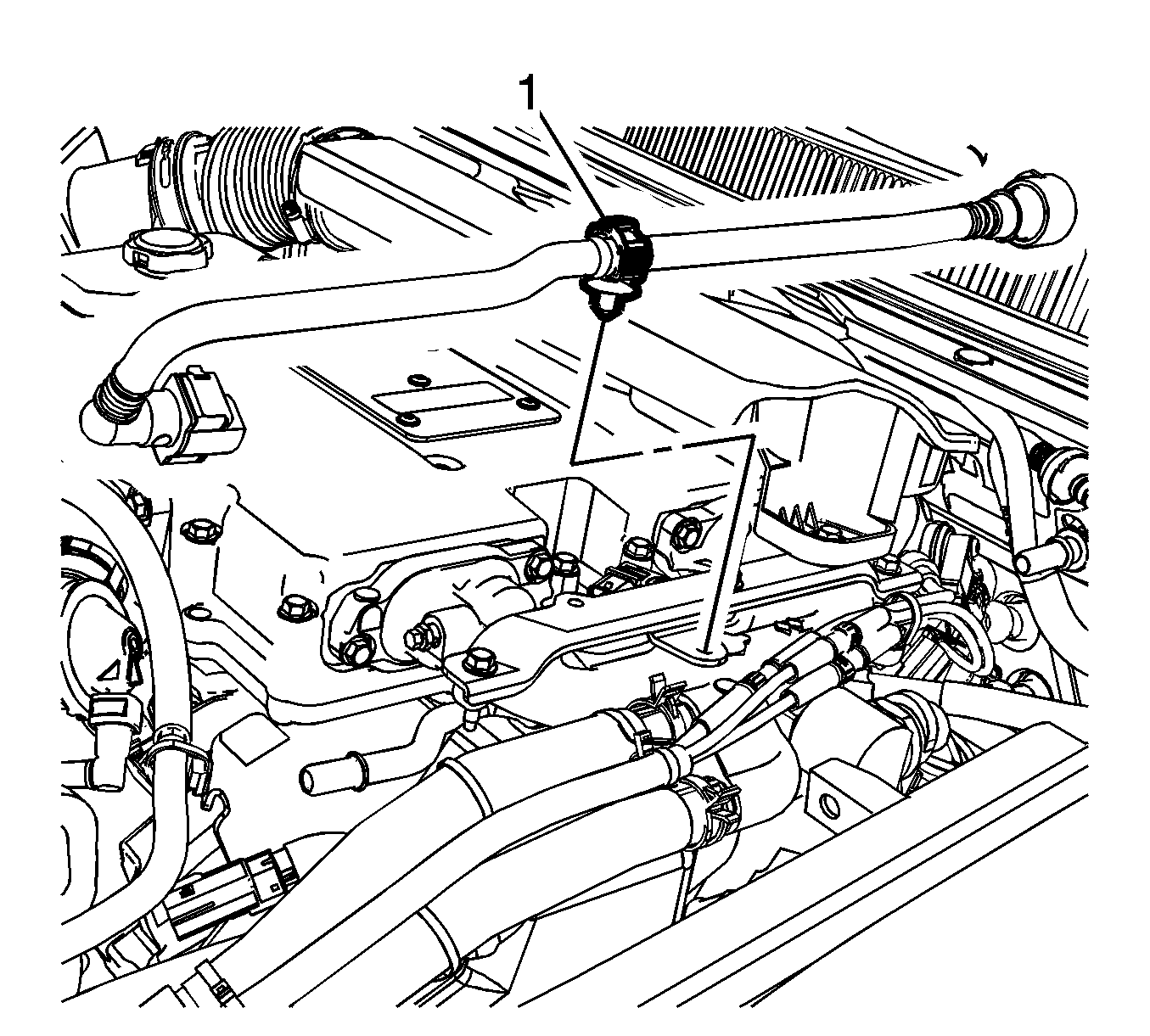

  3. GM3291343Courtesy of GENERAL MOTORS COMPANY

    Secure the power brake booster vacuum pipe retainer (1) to the engine bracket.

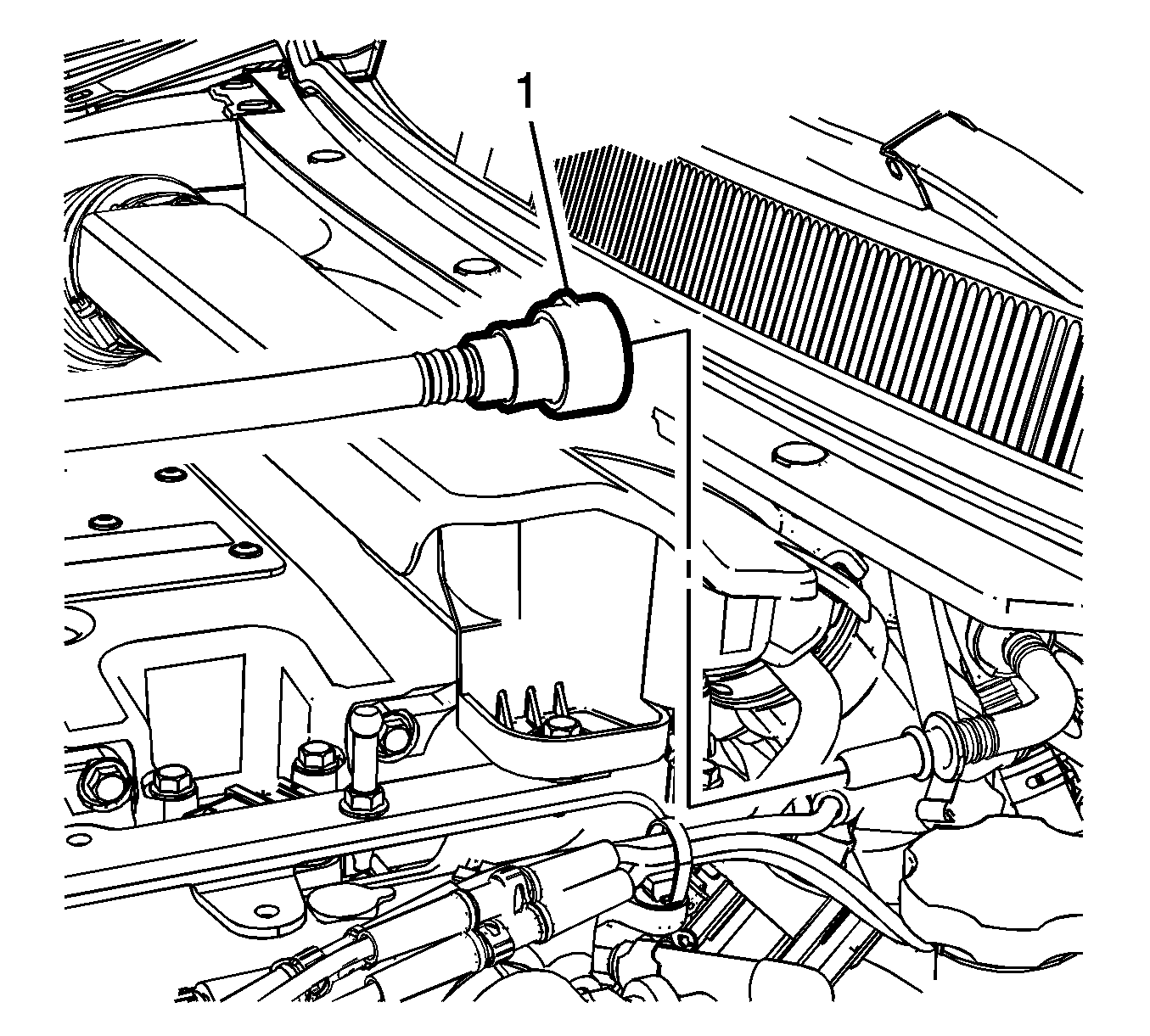

  4. GM3291341Courtesy of GENERAL MOTORS COMPANY

    Connect the power brake booster vacuum pipe quick connect (1).

  5. GM2754727Courtesy of GENERAL MOTORS COMPANY

    Install the intake manifold cover (3). Refer to Intake Manifold Cover Replacement (LFX) , or Intake Manifold Cover Replacement (LF3) .
