Installation Procedure
- Install the brake hose.

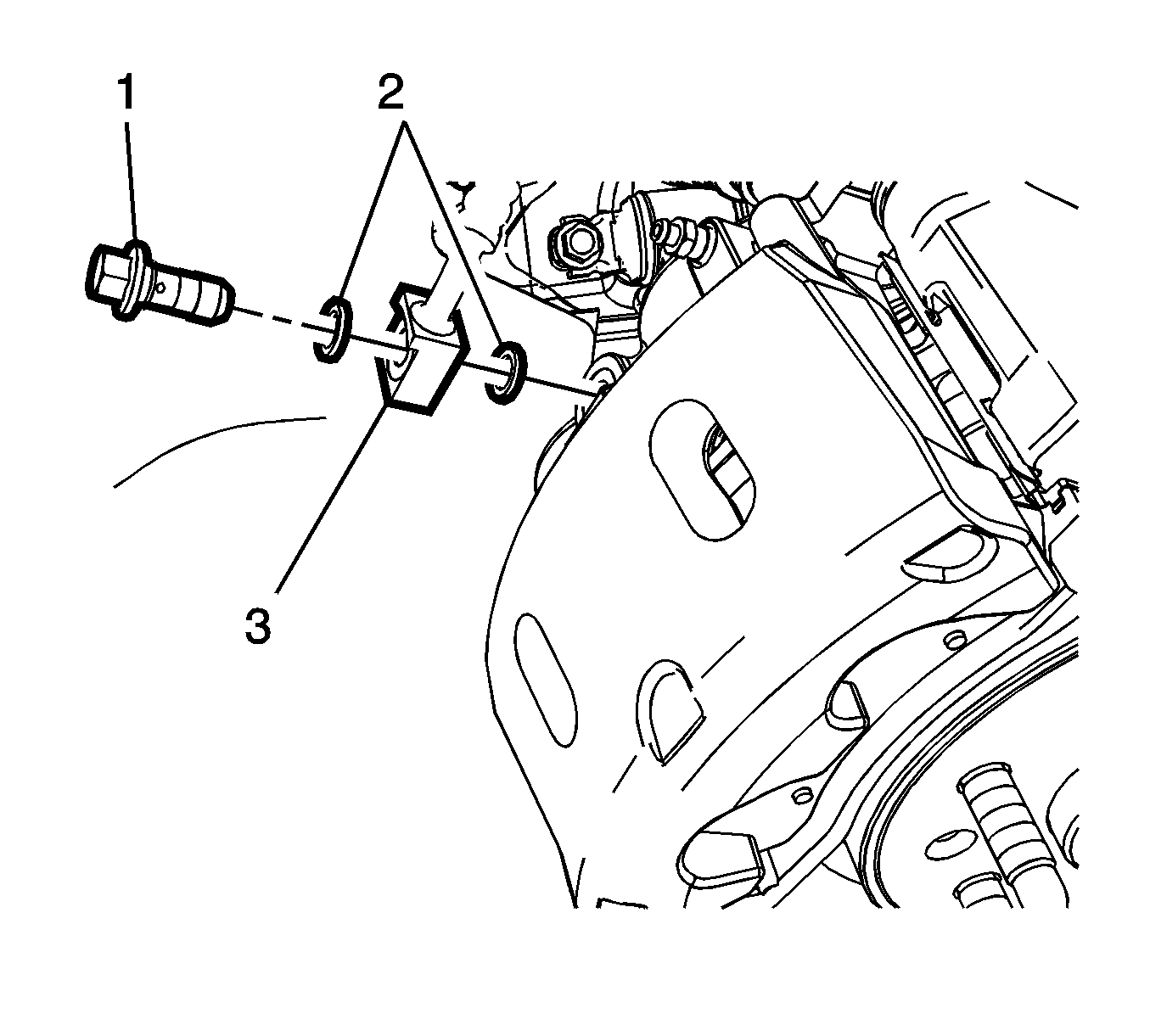

Assemble the brake hose fitting bolt (1) with new brake hose fitting gaskets (2) to the brake hose fitting (3).
- Install the brake hose assembly to the brake caliper and tighten the brake hose fitting bolt to 40 N.m (30 lb ft).

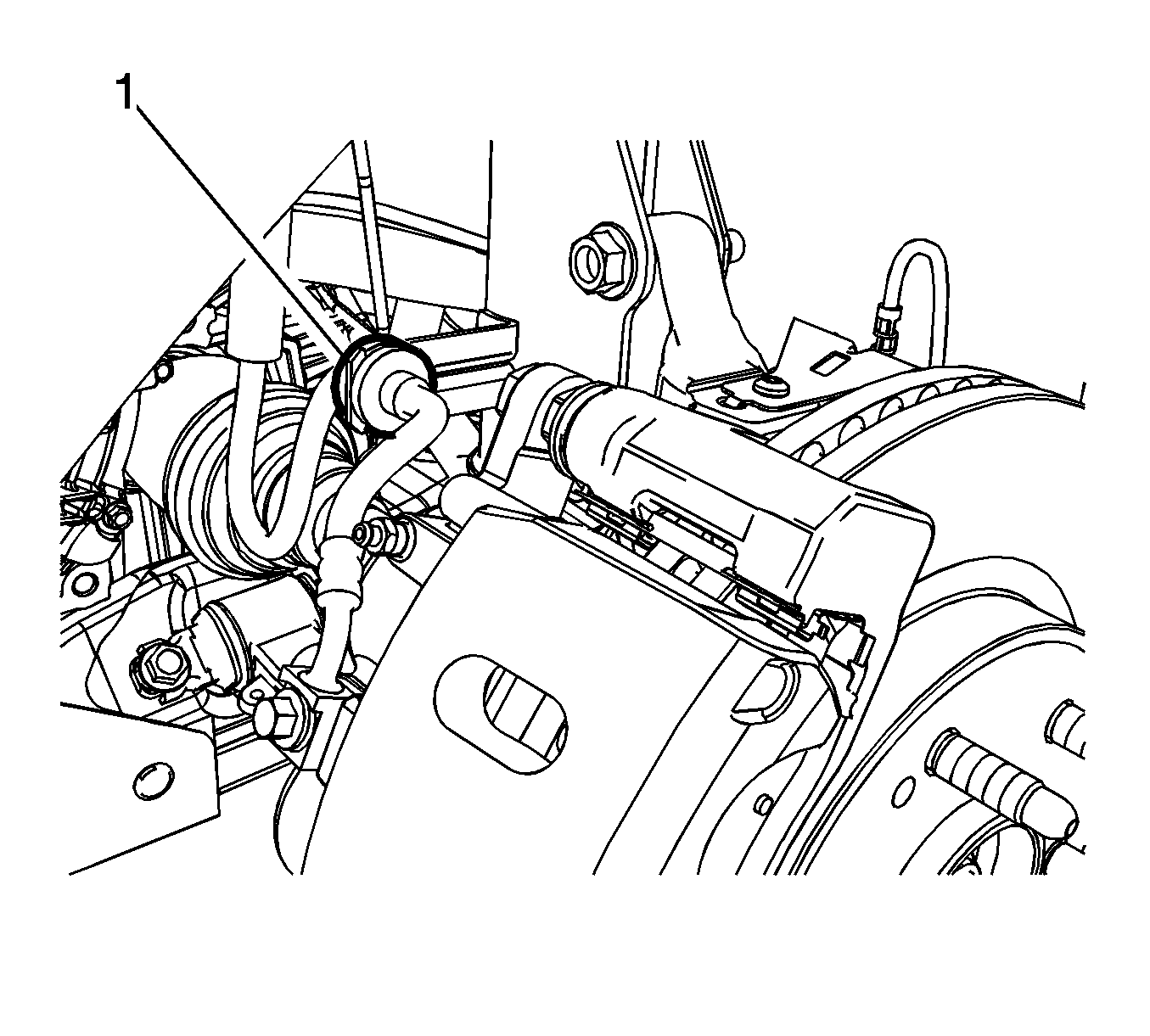

Install the brake hose grommet (1) to the strut bracket.
- Install the front brake hose to the wheelhouse bracket.

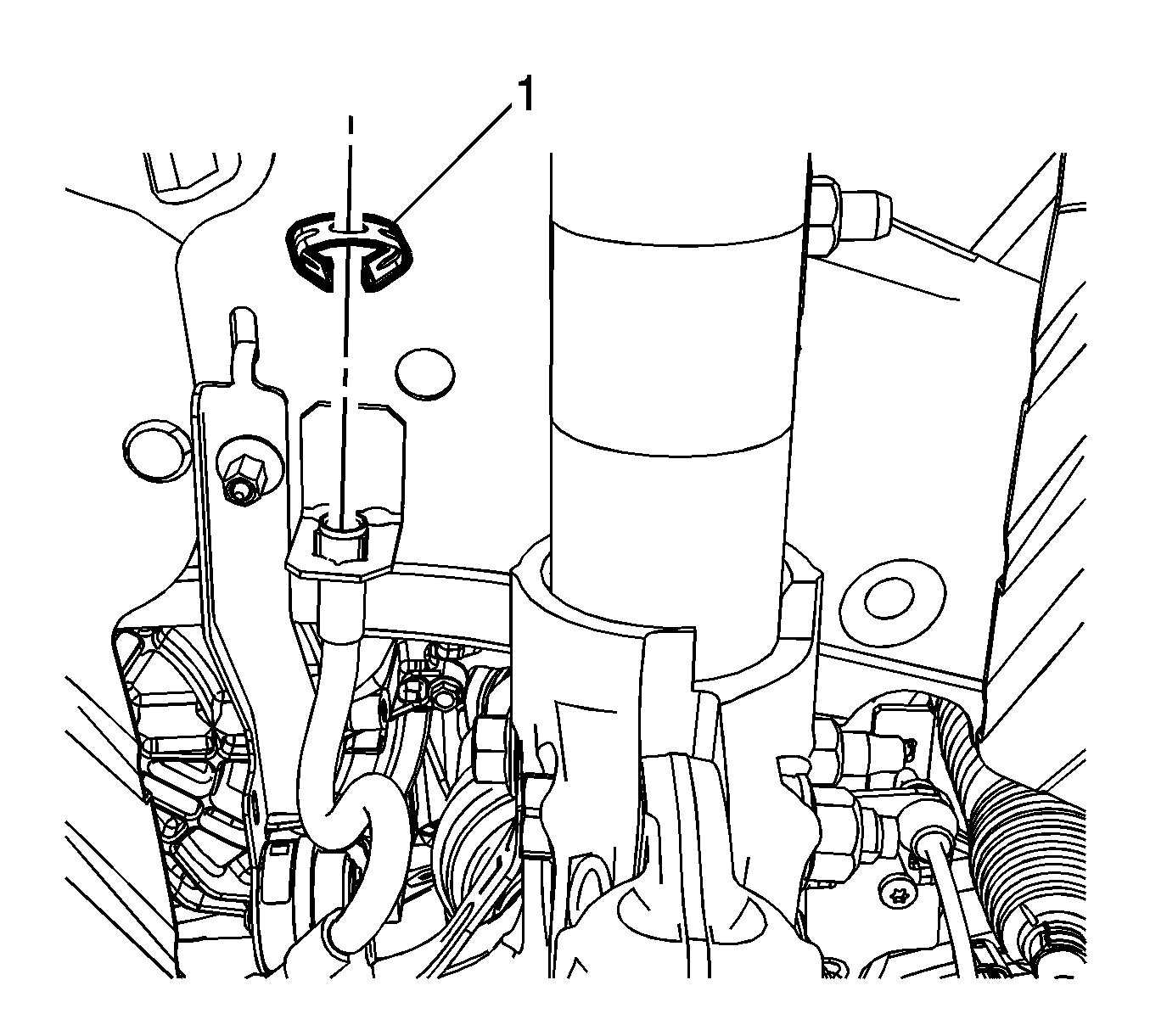

Install the brake hose retaining clip (1).

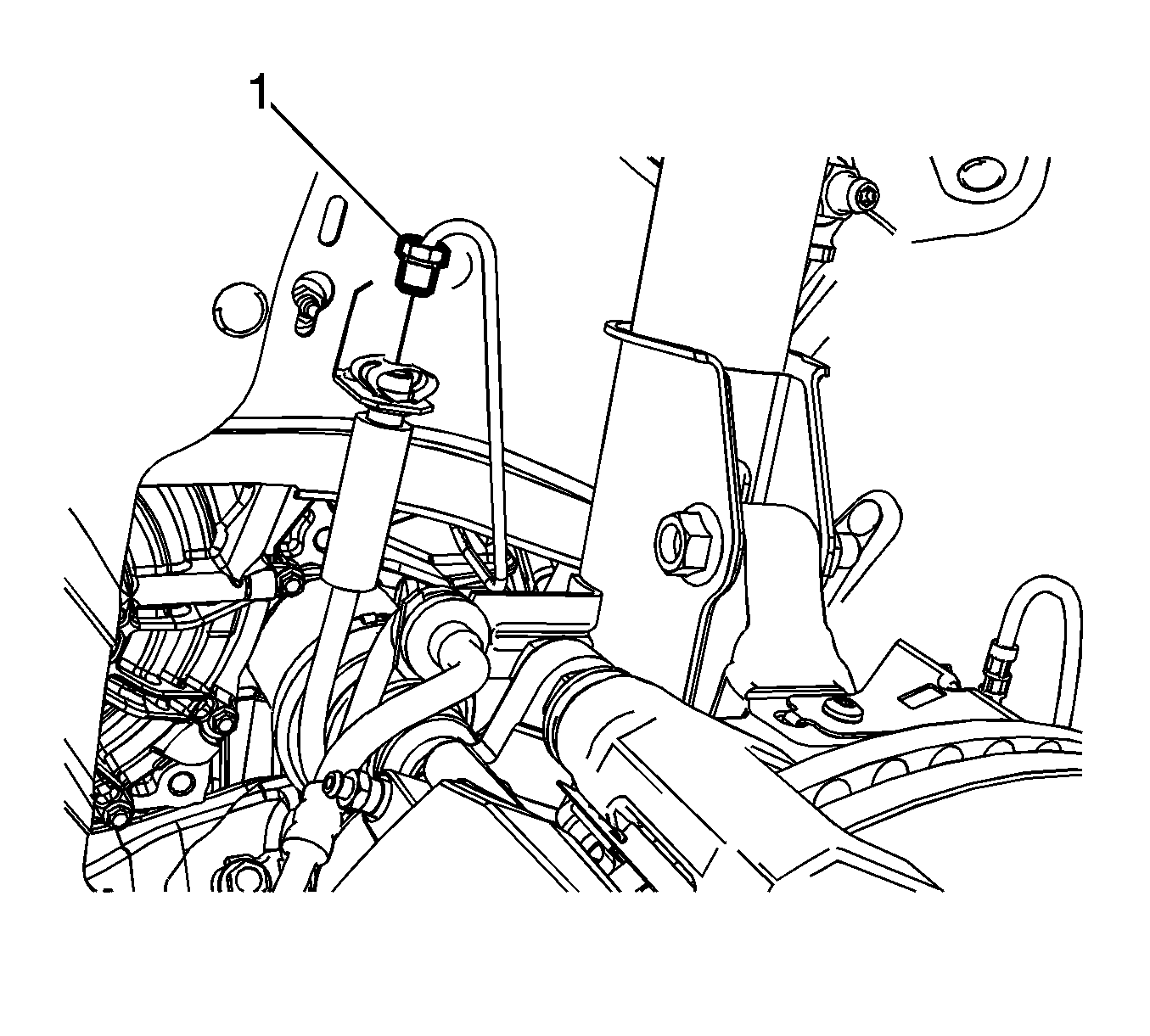

Connect the brake pipe fitting (1) to the brake hose.
- Tighten the brake pipe fitting to 18 N.m (13 lb ft).
- Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Manual) , or Hydraulic Brake System Bleeding (Pressure) .
- Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (With J64) , or Tire and Wheel Removal and Installation (With J55) .
CAUTION:
Refer to Fastener Caution .
