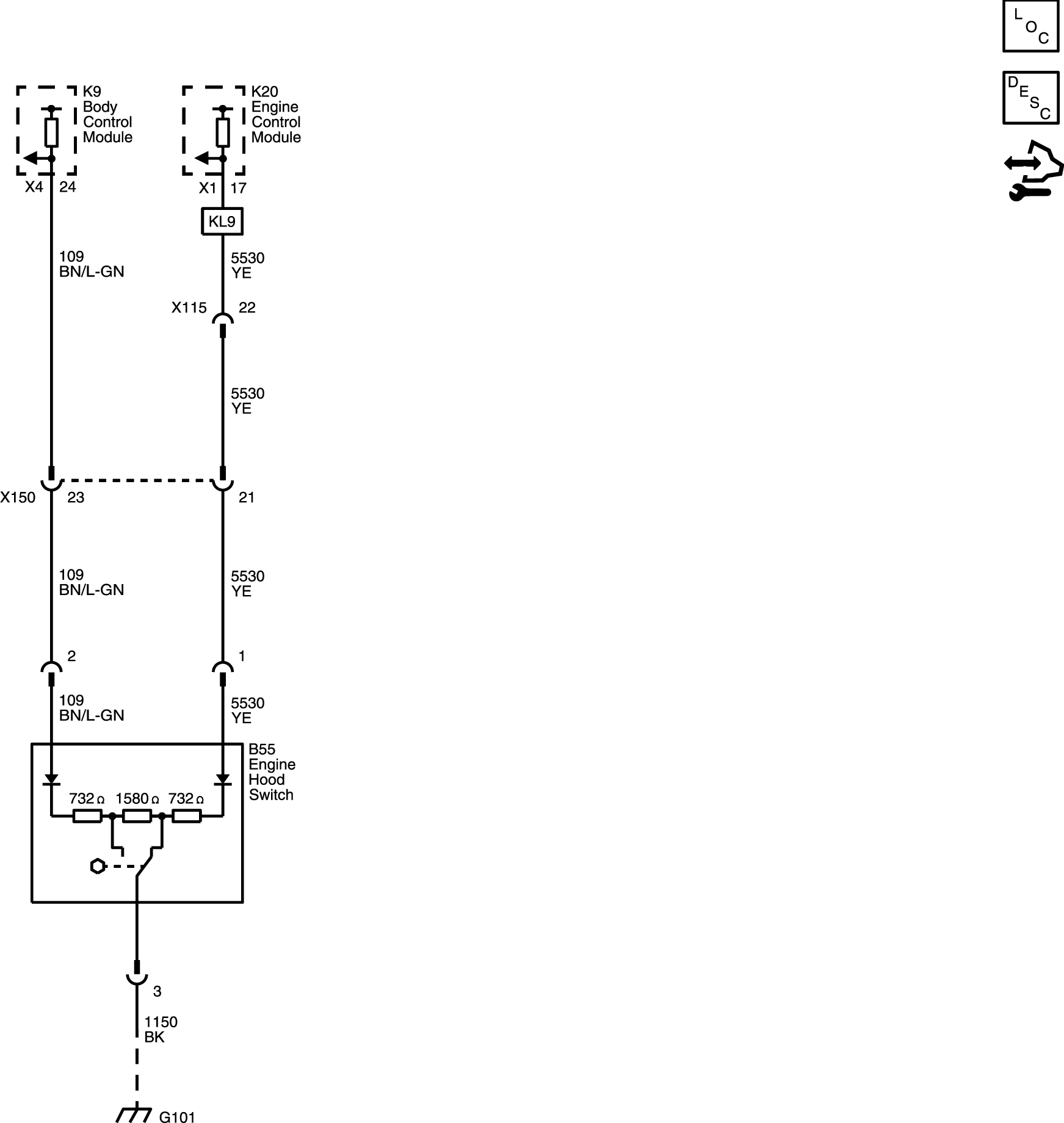

Home >> Cadillac >> 2019 >> XTS Platinum, AWD >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> Bolted Exterior Body Panels And Closures >> Schematic and Wiring Diagrams >> Hood Latch Wiring Schematics >> Engine Hood Switch
