Hood Replacement

Courtesy of GENERAL MOTORS COMPANY

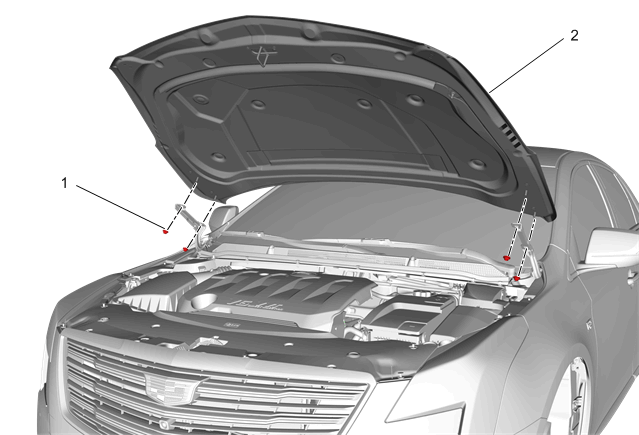

Callout	Component Name
Preliminary Procedure Hood Strut Replacement
1	Hood Hinge Nut [4x] CAUTION: Refer to Fastener Caution . Procedure Mark the hood or hinge position in order to aid in hood installation. tighten 22 N.m (16 lb ft)
2	Hood Procedure Transfer components as necessary. Hood Adjustment

Callout

Component Name

Preliminary Procedure
Hood Strut Replacement

Hood Hinge Nut [4x]

CAUTION:

Procedure
Mark the hood or hinge position in order to aid in hood installation.
tighten
22 N.m (16 lb ft)

Hood

Procedure
