Hood Rear Weatherstrip Replacement
Courtesy of GENERAL MOTORS COMPANY

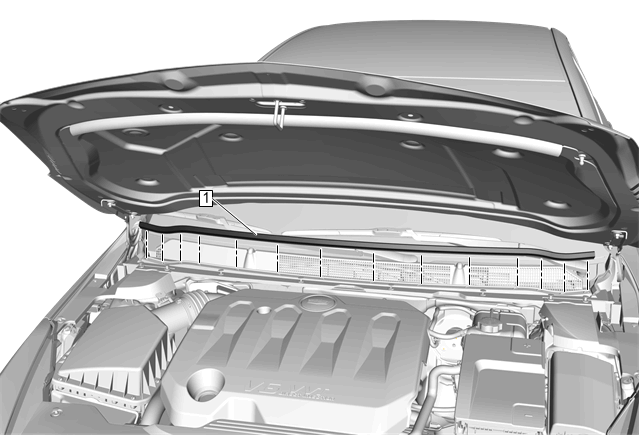

Callout
Component Name
1
Hood Rear Weatherstrip
Procedure
The hood rear weatherstrip is held in place with 14 plastic retainers that are part of the air inlet grille. Carefully pull the weatherstrip to the right/left to release form the retainers on the air inlet grille.
