Rear Floor Console Cover Replacement

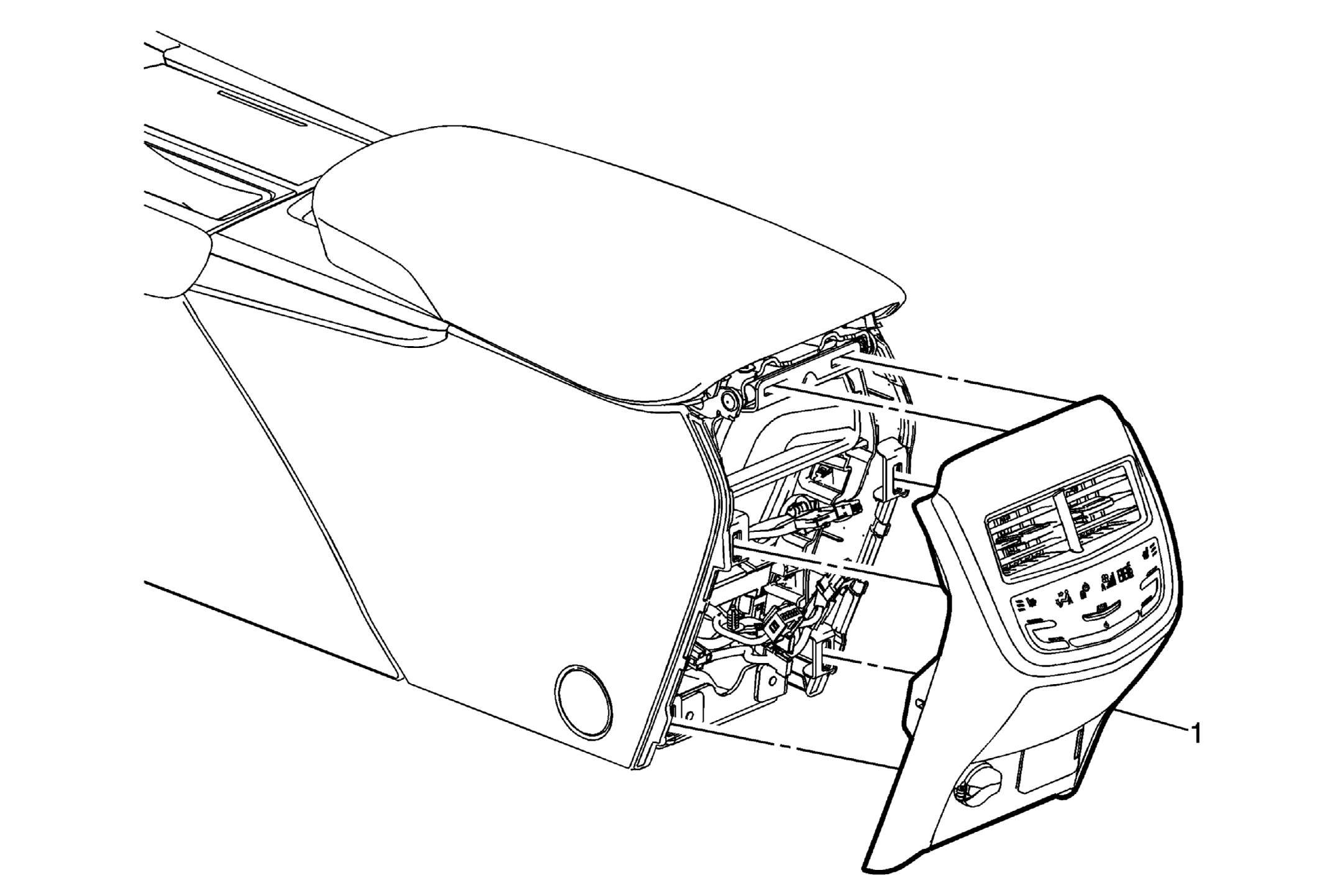

GM2715529Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Floor Console Cover

Procedures

  1. Use a flat-bladed plastic trim tool to remove the cover from the console.
  2. Disconnect the electrical connections.
  3. When replacing the console cover, transfer all necessary components.
