Front Floor Console Rear Ashtray Snuffer Replacement

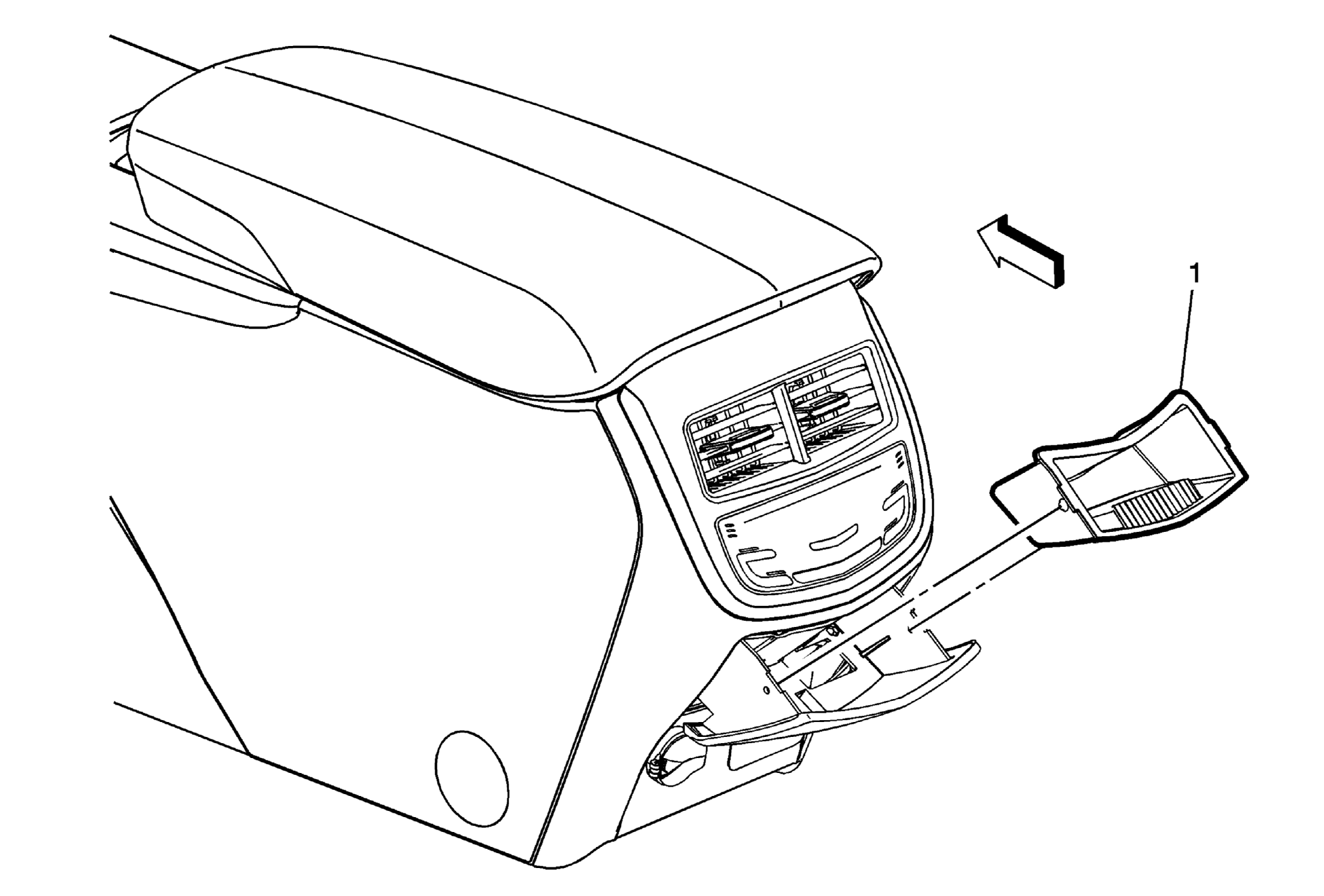

GM2768954Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Floor Console Rear Ashtray Snuffer

Procedures

  1. Open the front floor console rear compartment door to access the ashtray snuffer.
  2. Slide out the ashtray snuffer.
