Front Floor Console Front Ashtray Snuffer Replacement

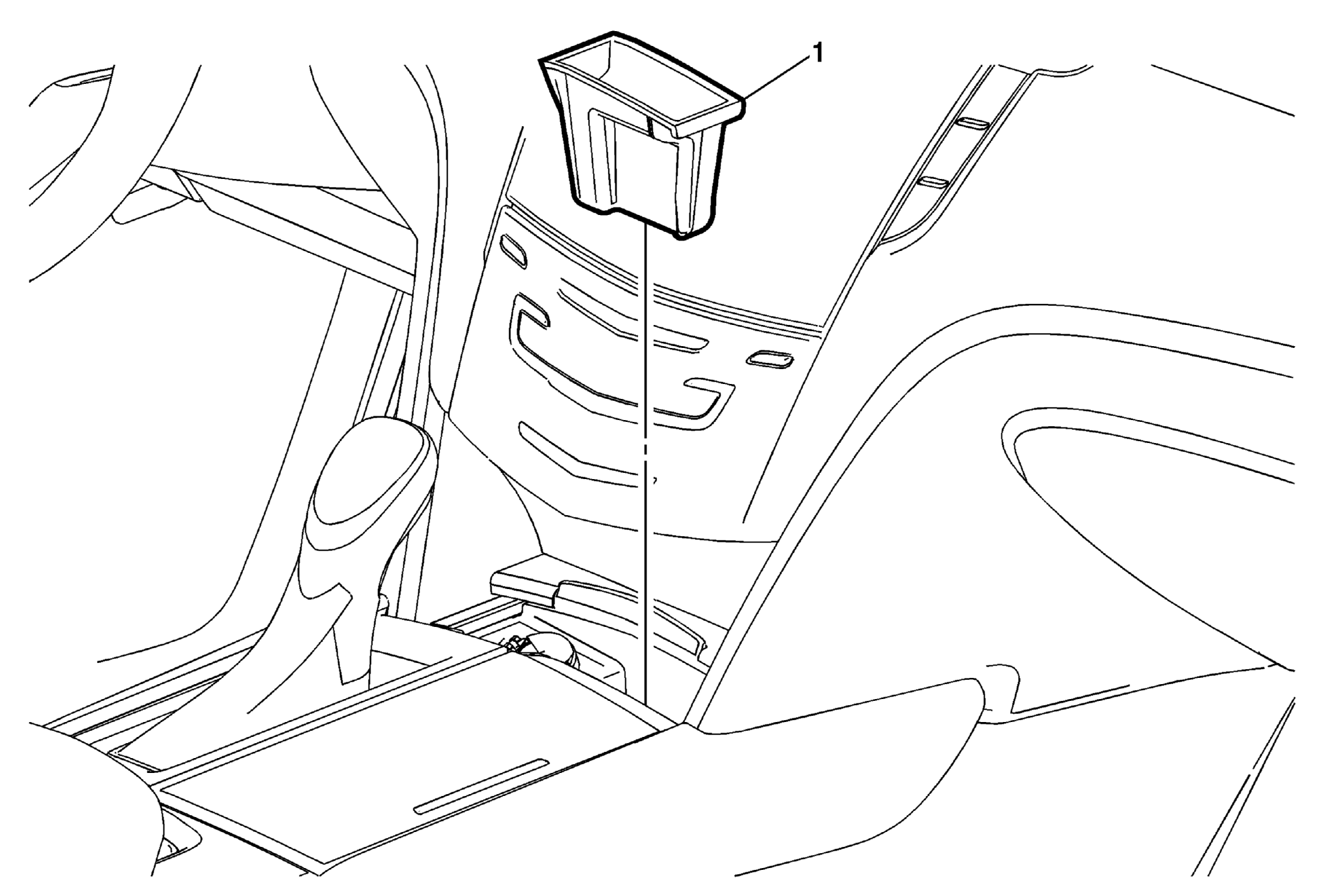

GM2716641Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Floor Console Front Ashtray Snuffer

Procedures

  1. Open the front floor console front ashtray door to access the ashtray snuffer.
  2. Slide out the ashtray snuffer.
