Steering Wheel Airbag Coil Replacement

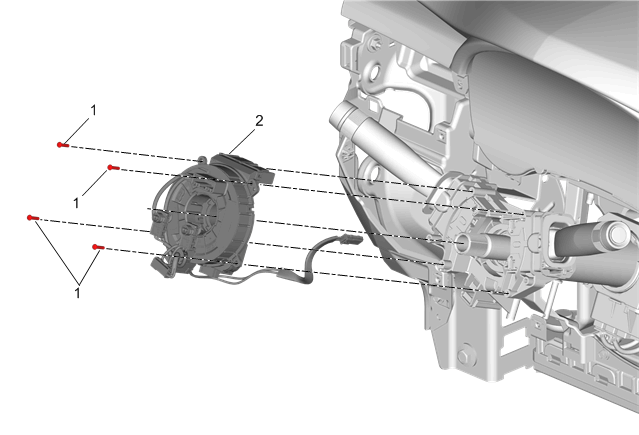

GM2762393Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Steering Wheel Replacement
  2. Steering Column Lower Trim Cover Replacement
1 Steering Wheel Airbag Coil Fastener [4x]
CAUTION:

Refer to Fastener Caution .
2 Steering Wheel Airbag Coil

Procedure

  1. Disconnect the electrical connectors.
  2. Transfer components as necessary.
  3. Ensure the steering wheel airbag coil is CENTERED during installation. Airbag Steering Wheel Module Coil Centering
