T2SR Antenna - Rear Window X1
 Courtesy of GENERAL MOTORS COMPANY
|

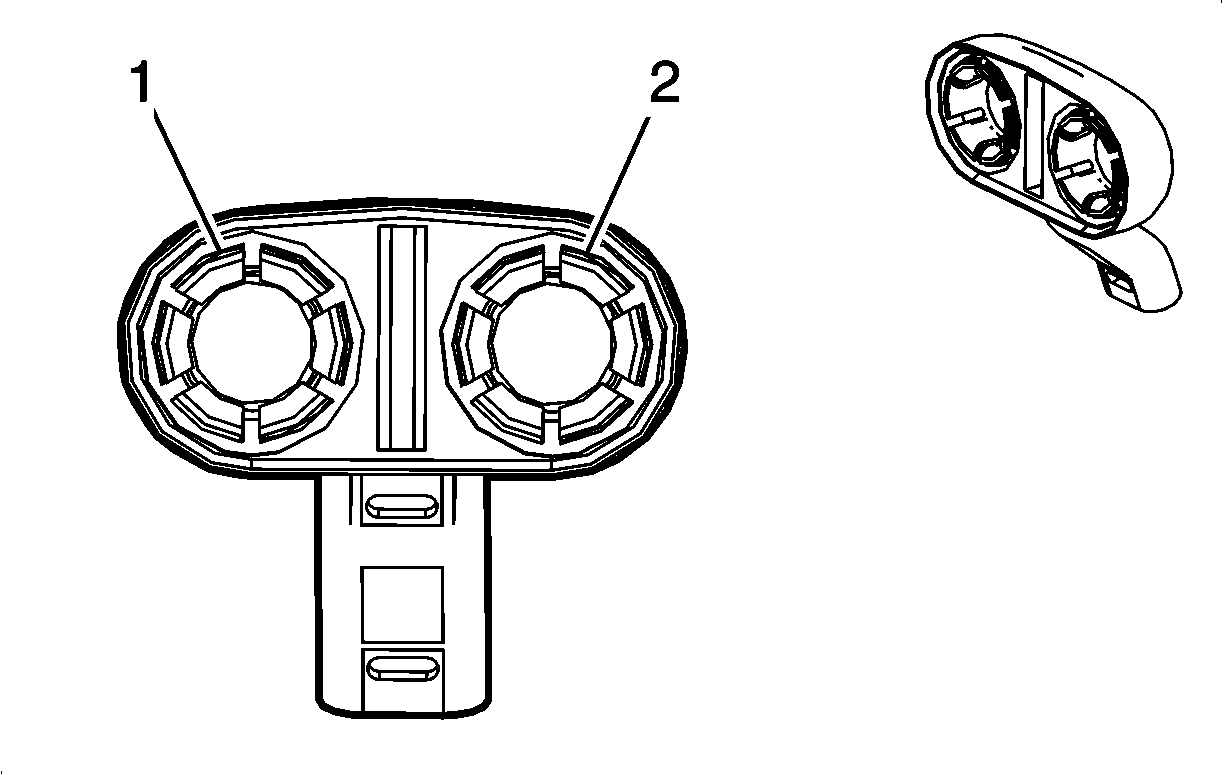

Connector Part Information
- Harness Type: Body
- OEM Connector: 8672002999
- Service Connector: Not Available
- Description: 2-Way F Push-Button Type (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
WH |
6002 |
Antenna Diversity Signal |
I |
- |
| 2 |
- |
WH |
3292 |
Antenna Diversity Signal 3 |
I |
- |
