Vehicle Underbody Components - Below Engine

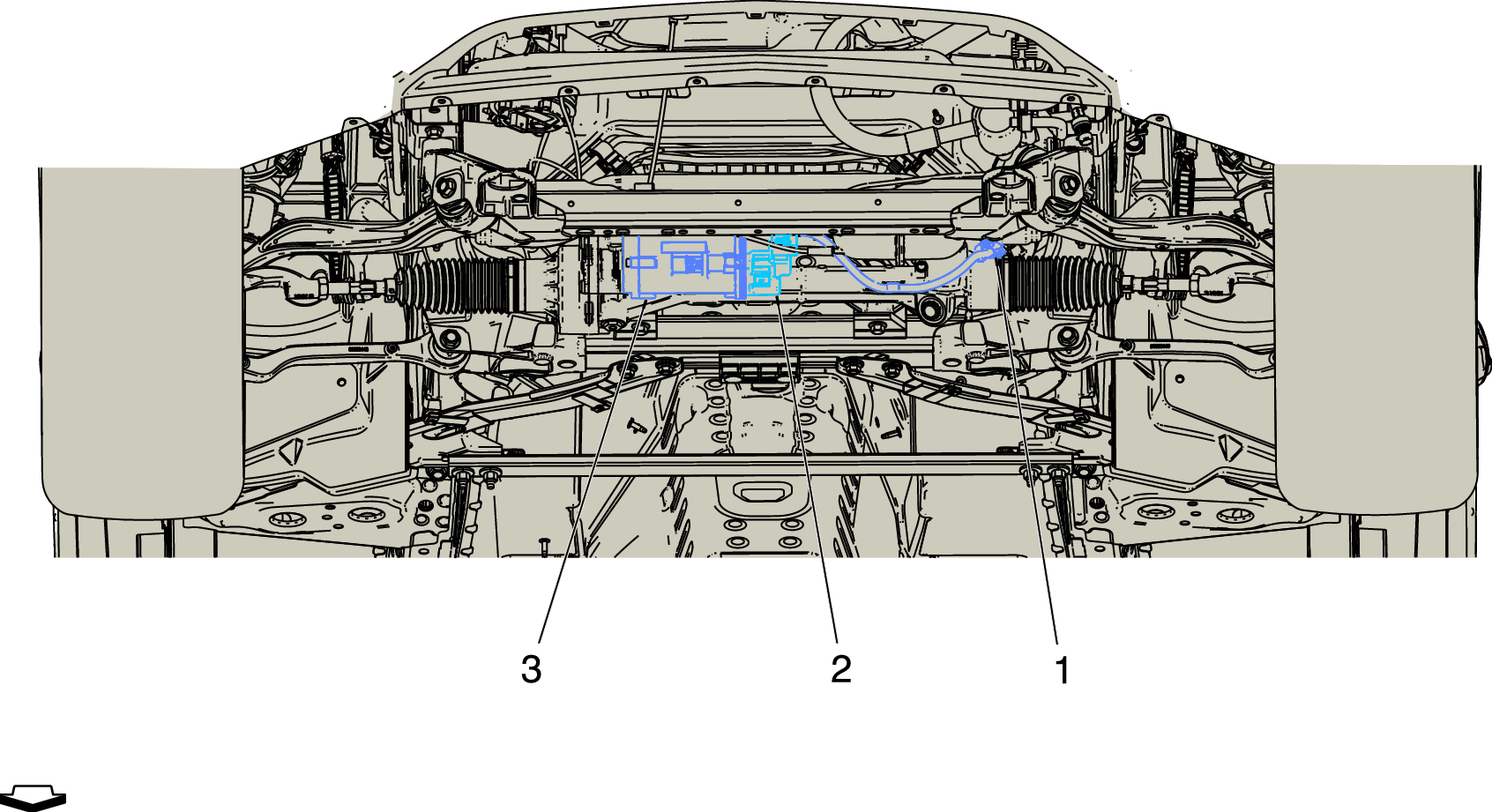

GM3940908Courtesy of GENERAL MOTORS COMPANY
Vehicle Underbody Components - Below Engine

Items
1. B137 Power Steering Shaft Torque Sensor (NJ2)
2. K43 Power Steering Control Module K43 Power Steering Control Module X1 (NJ2) , or K43 Power Steering Control Module X1 (NXC) , or K43 Power Steering Control Module X2 (NJ2)
3. M38 Power Steering Motor (NJ2)
