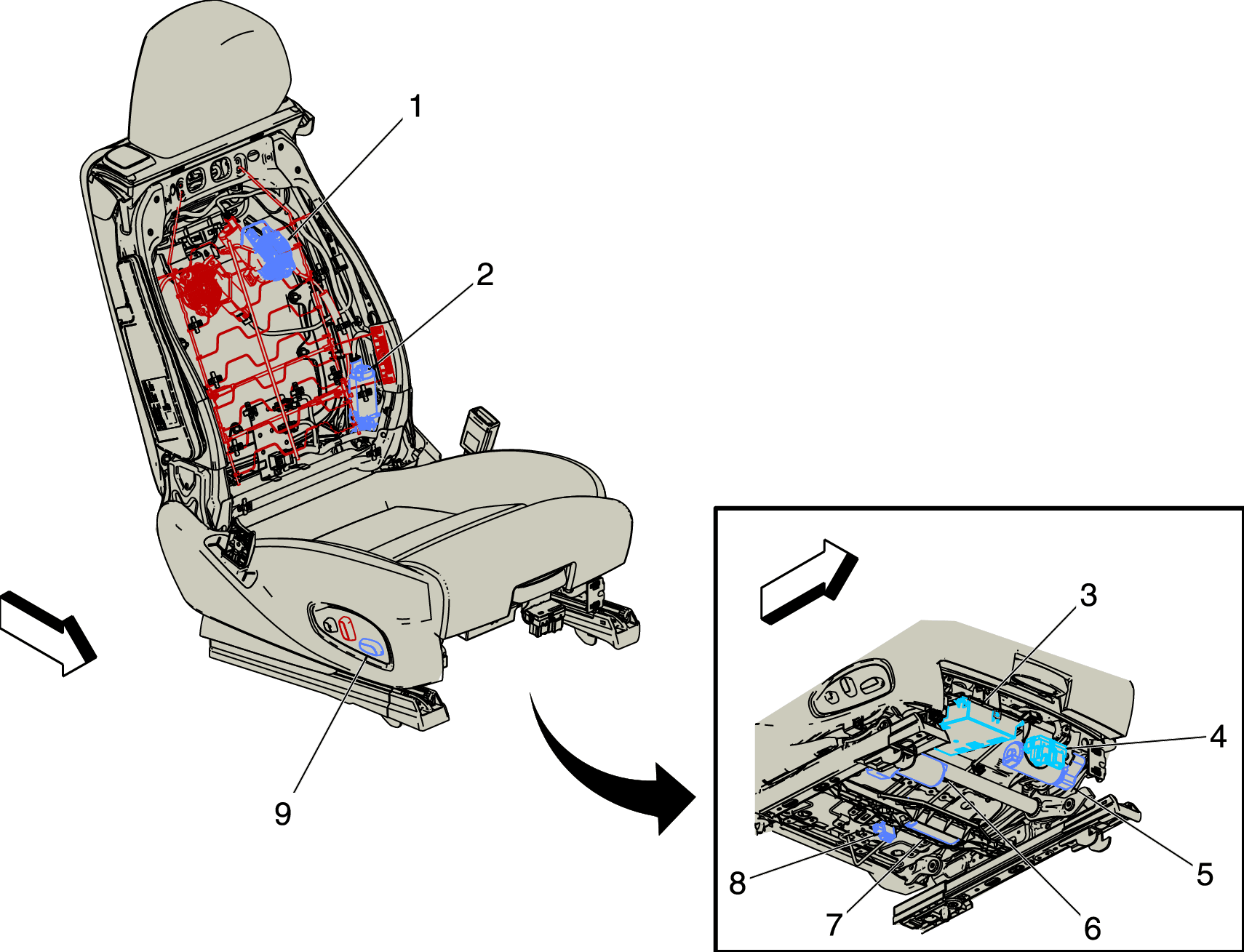

Passenger Seat Top and Bottom View

Courtesy of GENERAL MOTORS COMPANY

Items
1. K53P Seat Blower Assembly - Passenger Back (KU3) K53P Seat Blower Assembly - Passenger Back (-CZ2) , or K53P Seat Blower Assembly - Passenger Back (CZ2)
2. M56P Seat Recline Motor - Passenger (AG2) M56P Seat Recline Motor - Passenger (-CZ2)
3. K40P Seat Memory Control Module - Passenger (A44) K40P Seat Memory Control Module - Passenger X1 ((-CZ2)) , or K40P Seat Memory Control Module - Passenger X2 ((-CZ2)) , or K40P Seat Memory Control Module - Passenger X3 ((-CZ2)) , or K40P Seat Memory Control Module - Passenger X5 ((-CZ2)) , or K40P Seat Memory Control Module - Passenger X6 ((-CZ2))
4. K29F Seat Heating Control Module - Front (KA1) K29F Seat Heating Control Module - Front X1 (-CZ2) , or K29F Seat Heating Control Module - Front X1 (CZ2) , or K29F Seat Heating Control Module - Front X2 (-CZ2) , or K29F Seat Heating Control Module - Front X2 (CZ2)
5. M50P Seat Front Vertical Motor - Passenger (AG2) M50P Seat Front Vertical Motor - Passenger
6. M55P Seat Rear Vertical Motor - Passenger (AG2) M55P Seat Rear Vertical Motor - Passenger
7. M51P Seat Horizontal Motor - Passenger (AG2) M51P Seat Horizontal Motor - Passenger
8. E8U Seat Courtesy Lamp - Right Rear (TSP) E8U Seat Courtesy Lamp - Right Rear
9. S64P Seat Adjuster Switch - Passenger (AG2) S64P Seat Adjuster Switch - Passenger X1 , or S64P Seat Adjuster Switch - Passenger X2
