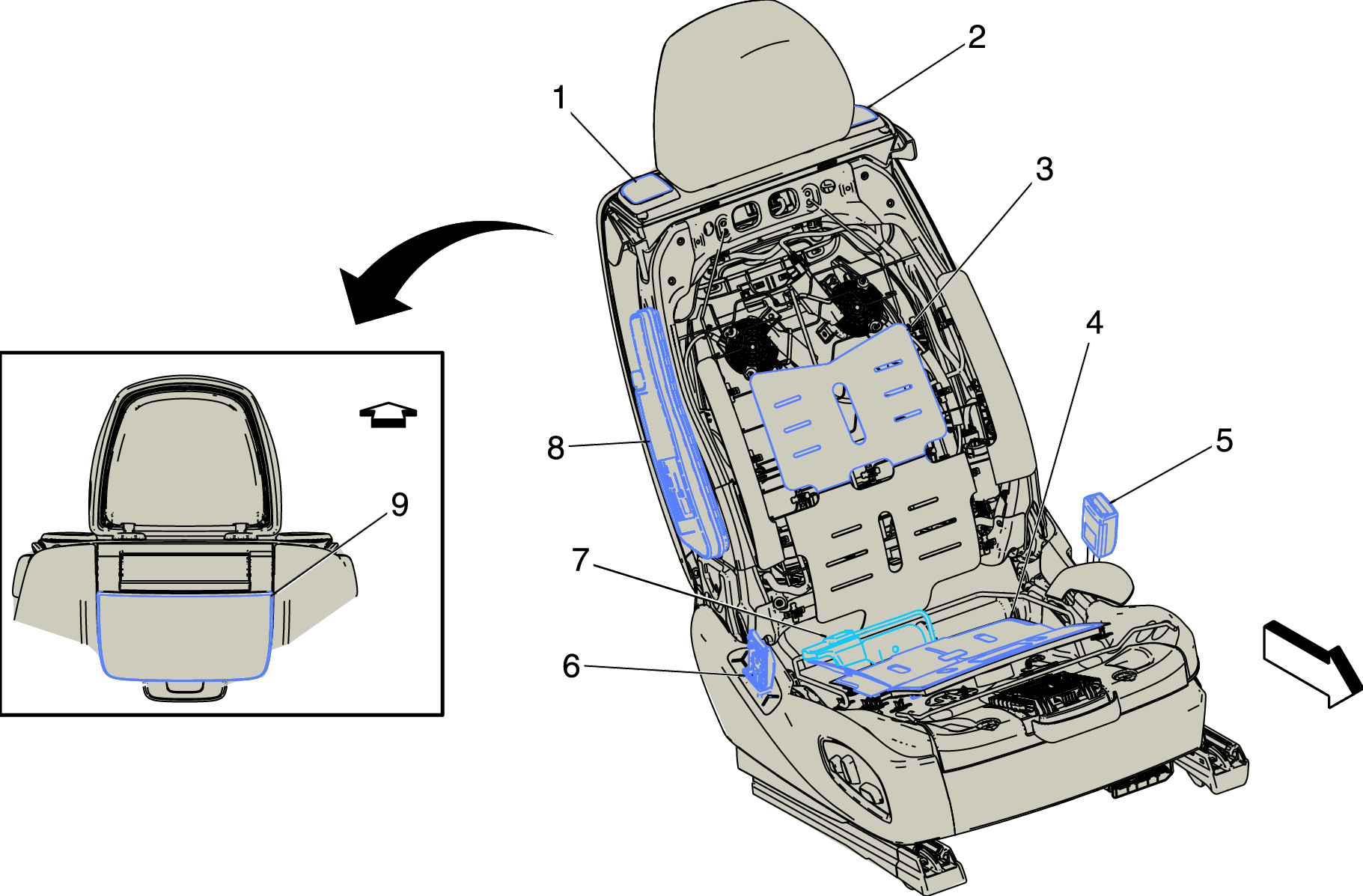

Passenger Seat Top View
Passenger Seat Top View
| Items |
|---|
| 1. P19R Speaker - Passenger Seat Right (UQS) P19R Speaker - Passenger Seat Right (-CZ2) , or P19R Speaker - Passenger Seat Right (CZ2) |
| 2. P19Q Speaker - Passenger Seat Left (UQS) P19Q Speaker - Passenger Seat Left (-CZ2) |
| 3. E14C Seat Heating Element - Passenger Back (KA1) |
| 4. E14D Seat Heating Element - Passenger Cushion (KA1) |
| 5. B153P Seat Belt Buckle - Passenger B153P Seat Belt Buckle - Passenger |
| 6. F113P Seat Belt Anchor Pretensioner - Passenger F113P Seat Belt Anchor Pretensioner - Passenger |
| 7. B60 Passenger Presence Sensor B60 Passenger Presence Sensor () |
| 8. F106RF Seat Side Air Bag - Right Front (AYF/ANH) F106RF Seat Side Air Bag - Right Front (AYF/ANH) , or F106RF Seat Side Air Bag - Right Front (CZ2) |
| 9. P22E Video Display - Driver Seat Back |
