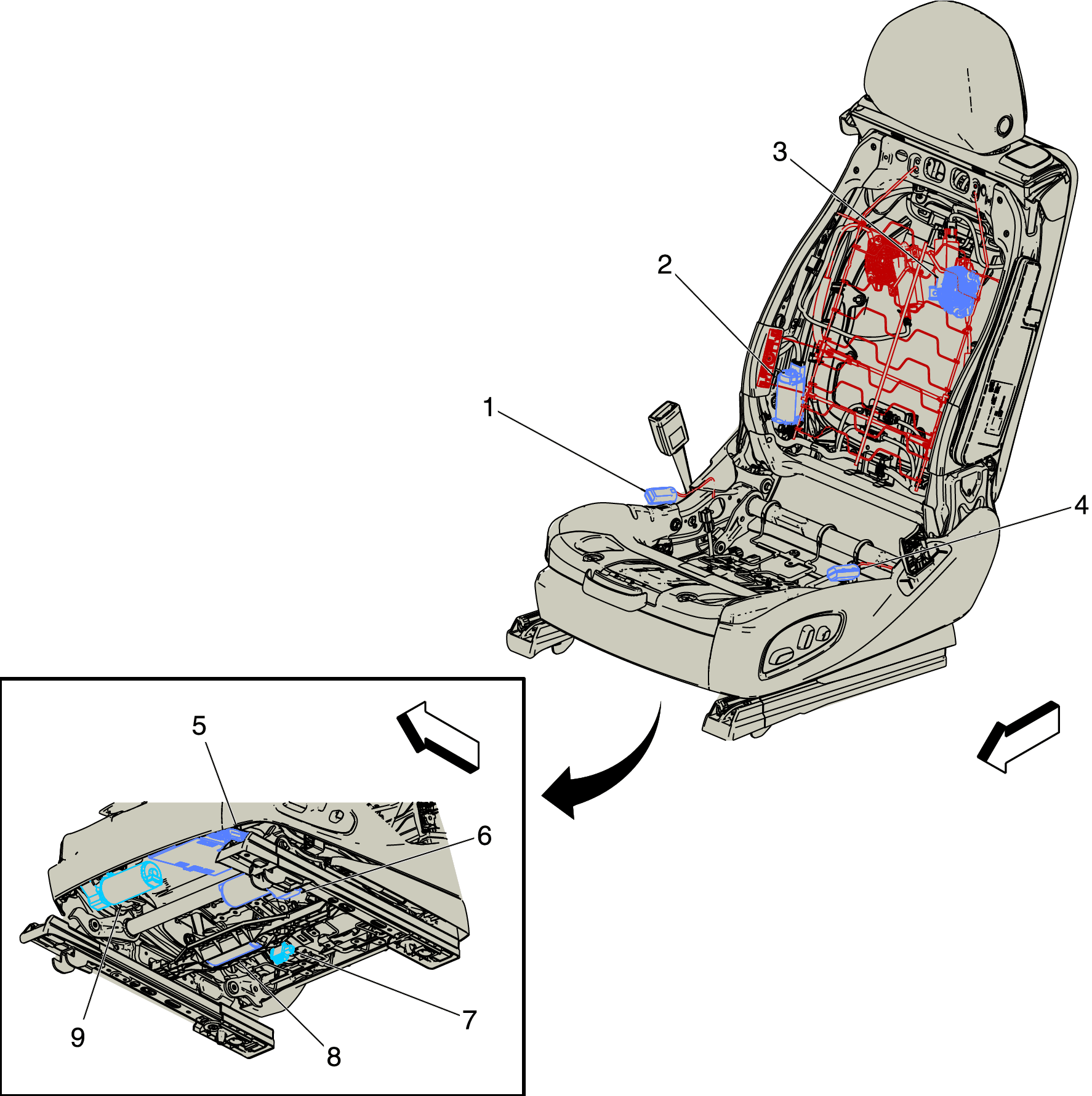

Driver Seat Top and Bottom

Courtesy of GENERAL MOTORS COMPANY

Items
1. P45RR Seat Haptic Movement Motor - Driver Right Rear (UGN/UVZ) P45RR Seat Haptic Movement Motor - Driver Right Rear
2. M56D Seat Recline Motor - Driver (AG1) M56D Seat Recline Motor - Driver (-CZ2) , or M56D Seat Recline Motor - Driver (CZ2)
3. K53D Seat Blower Assembly - Driver Back (KU1) K53D Seat Blower Assembly - Driver Back (-CZ2)
4. P45LR Seat Haptic Movement Motor - Driver Left Rear (UGN/UVZ) P45LR Seat Haptic Movement Motor - Driver Left Rear
5. K40D Seat Memory Control Module - Driver (A44) K40D Seat Memory Control Module - Driver X1 , or K40D Seat Memory Control Module - Driver X2 () , or K40D Seat Memory Control Module - Driver X3 , or K40D Seat Memory Control Module - Driver X5 , or K40D Seat Memory Control Module - Driver X6
6. M55D Seat Rear Vertical Motor - Driver (AG1) M55D Seat Rear Vertical Motor - Driver
7. E8T Seat Courtesy Lamp - Left Rear (TSP) E8T Seat Courtesy Lamp - Left Rear
8. M51D Seat Horizontal Motor - Driver (AG1) M51D Seat Horizontal Motor - Driver ()
9. M50D Seat Front Vertical Motor - Driver (AG1) M50D Seat Front Vertical Motor - Driver
