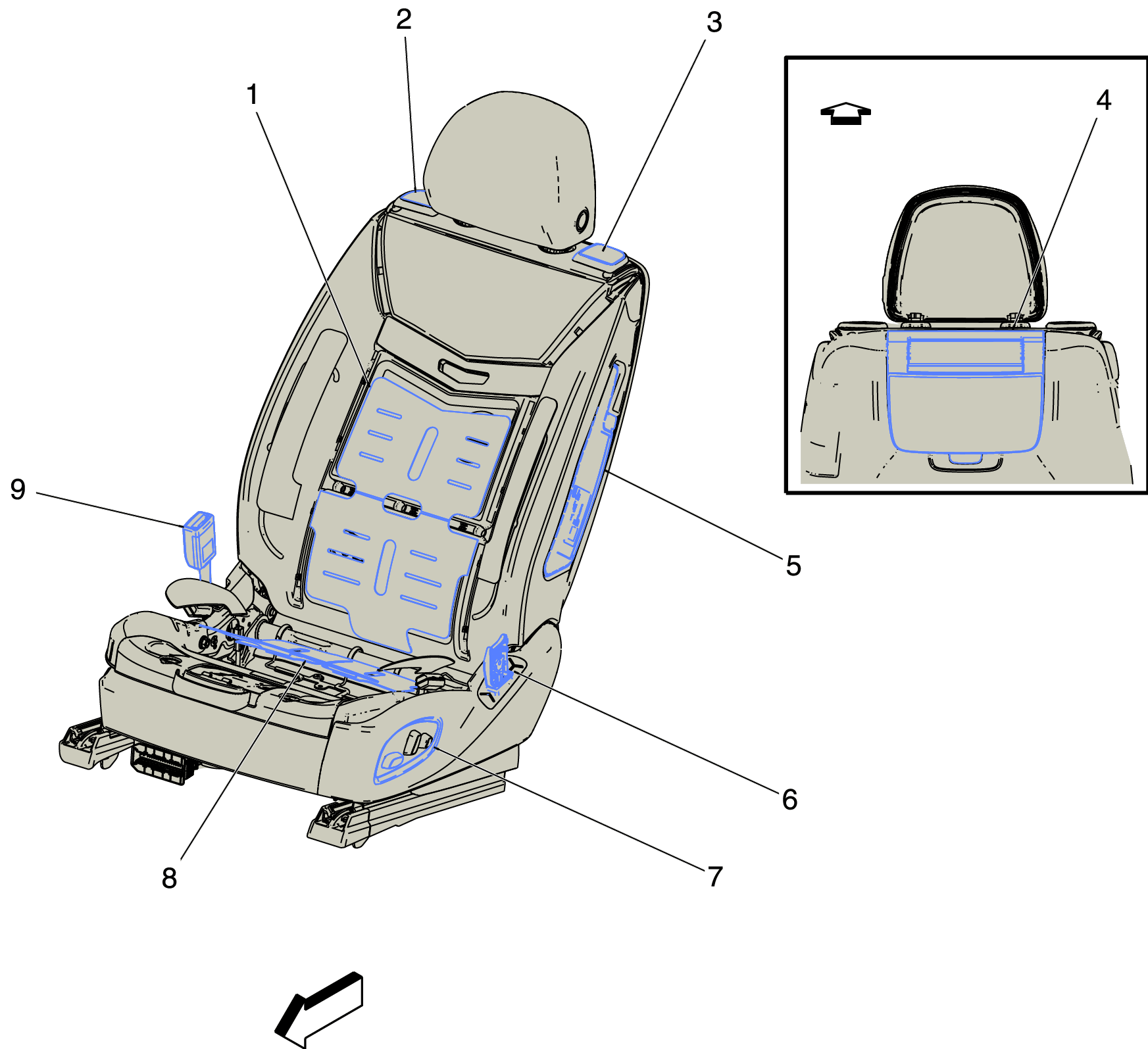

Driver Seat Top View
Driver Seat Top View
| Items |
|---|
| 1. E14A Seat Heating Element - Driver Back (KA1) |
| 2. P19C Speaker - Driver Seat Left (UQS) P19C Speaker - Driver Seat Left (UQS+CZ2) , or P19C Speaker - Driver Seat Left (UQS) |
| 3. P19C Speaker - Driver Seat Left (UQS) P19C Speaker - Driver Seat Left (UQS+CZ2) , or P19C Speaker - Driver Seat Left (UQS) |
| 4. P22F Video Display - Passenger Seat Back |
| 5. F106LF Seat Side Air Bag - Left Front (AYF/ANH) F106LF Seat Side Air Bag - Left Front (AYF/ANH) , or F106LF Seat Side Air Bag - Left Front (CZ2) |
| 6. F113D Seat Belt Anchor Pretensioner - Driver F113D Seat Belt Anchor Pretensioner - Driver |
| 7. S64D Seat Adjuster Switch - Driver (AG1) S64D Seat Adjuster Switch - Driver X1 , or S64D Seat Adjuster Switch - Driver X2 |
| 8. E14B Seat Heating Element - Driver Cushion (KA1) |
| 9. B153D Seat Belt Buckle - Driver B153D Seat Belt Buckle - Driver |
