Electrical Component Locator - Ground Views
>>
Ground Views
>>
G205 and G302
G205 and G302
Courtesy of GENERAL MOTORS COMPANY

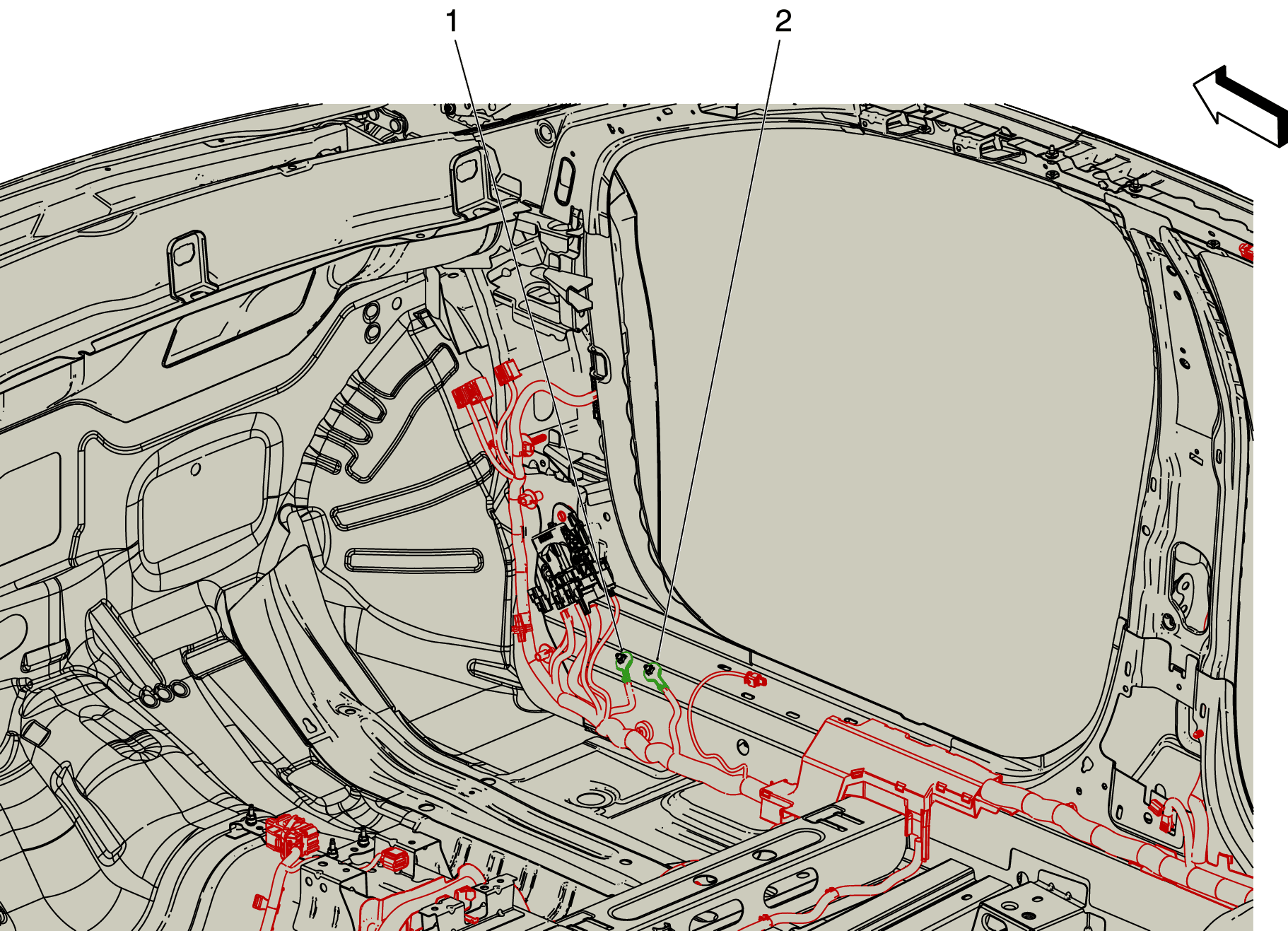

G205 and G302
Items
1. G205 Body Harness and Instrument Panel Harness
2. G302 Body Harness and Instrument Panel Harness
