Electrical Component Locator - Ground Views
>>
Ground Views
>>
G120, G121 and G122 (LF3)

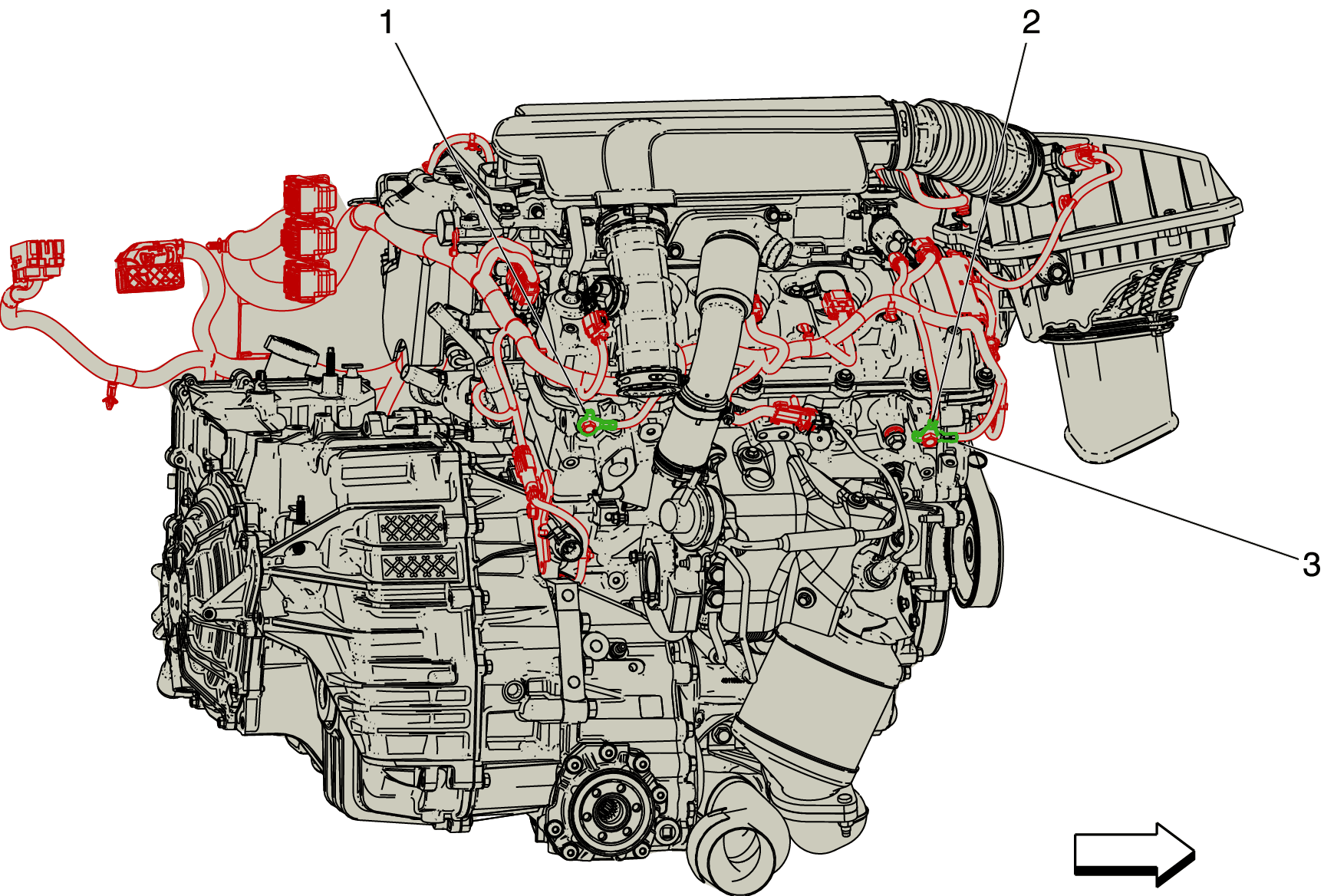

G120, G121 and G122 (LF3)
Courtesy of GENERAL MOTORS COMPANY
G120, G121 and G122 (LF3)
Items
1. G122 Engine Harness
2. G120 Engine Harness
3. G121 Engine Harness
Courtesy of GENERAL MOTORS COMPANY
