Ground Views
>>
G103 and G109

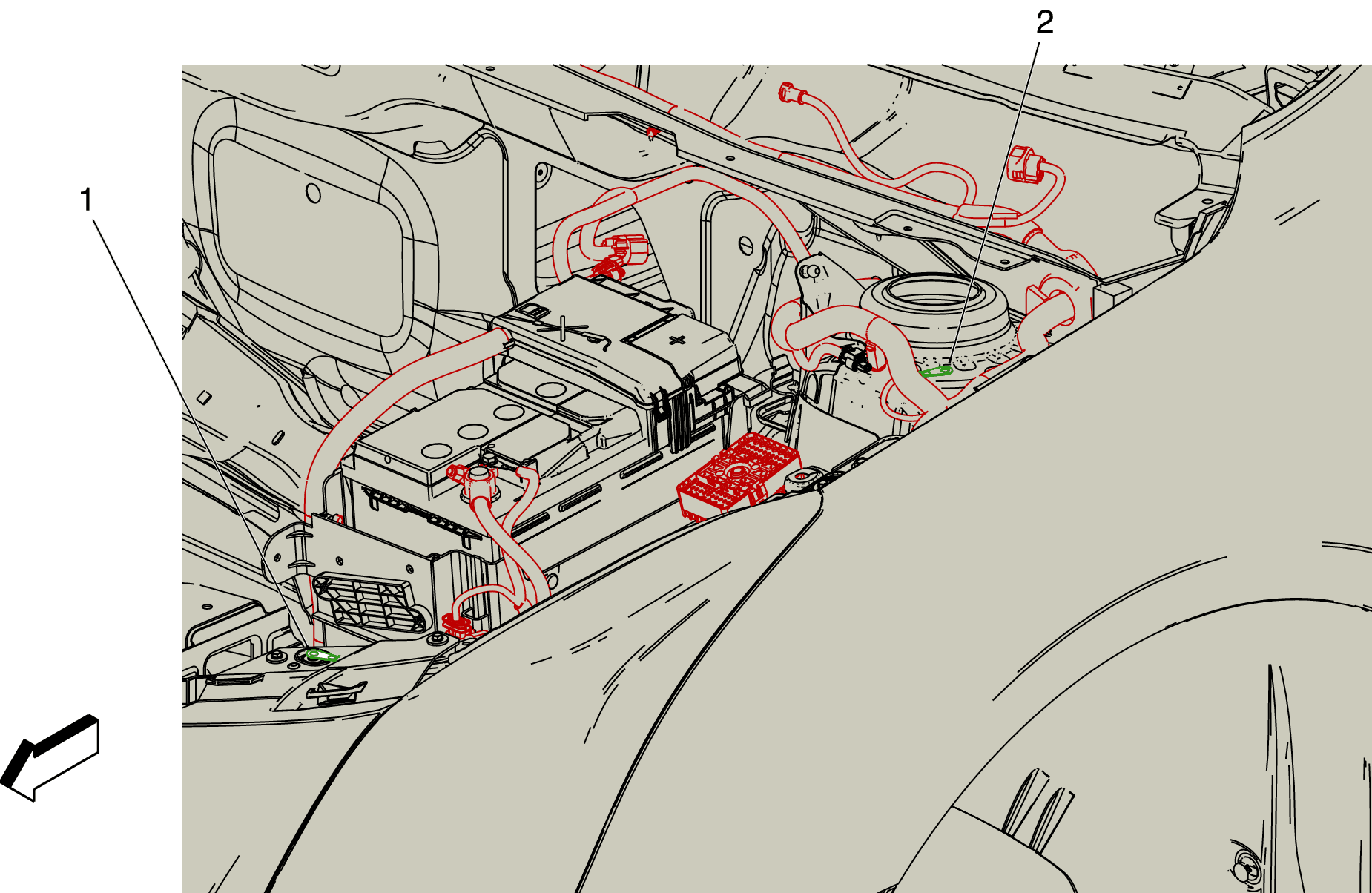

G103 and G109
Courtesy of GENERAL MOTORS COMPANY
G103 and G109
Items
1. G103 Battery Negative Harness and Body Harness
2. G109 Forward Lamp Harness
