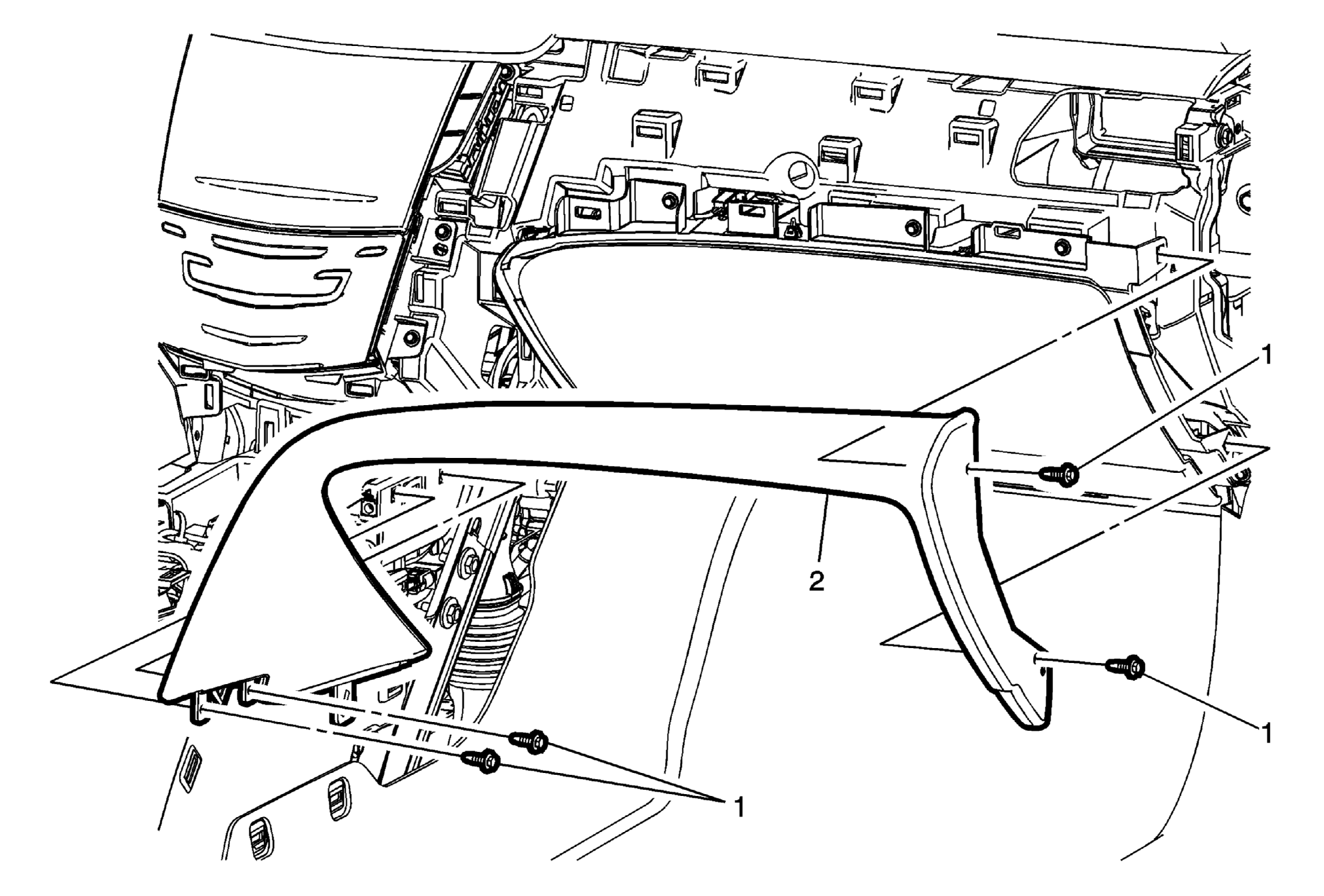

Instrument Panel Lower Trim Panel Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the right instrument panel side trim panel. Refer to Instrument Panel Side Trim Panel Replacement . Remove the right side instrument panel trim panel. Refer to Instrument Panel Trim Panel Replacement - Right Side .
1	Instrument Panel Lower Trim Panel Fasteners (Qty: 4) CAUTION: Refer to Fastener Caution .
2	Instrument Panel Lower Trim Panel Procedure Use a flat bladed plastic trim tool in order to release the retainers securing the trim panel to the instrument panel assembly.

Callout

Component Name

Preliminary Procedures

Remove the right instrument panel side trim panel. Refer to Instrument Panel Side Trim Panel Replacement .
Remove the right side instrument panel trim panel. Refer to Instrument Panel Trim Panel Replacement - Right Side .

Instrument Panel Lower Trim Panel Fasteners (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Instrument Panel Lower Trim Panel
Procedure
Use a flat bladed plastic trim tool in order to release the retainers securing the trim panel to the instrument panel assembly.
