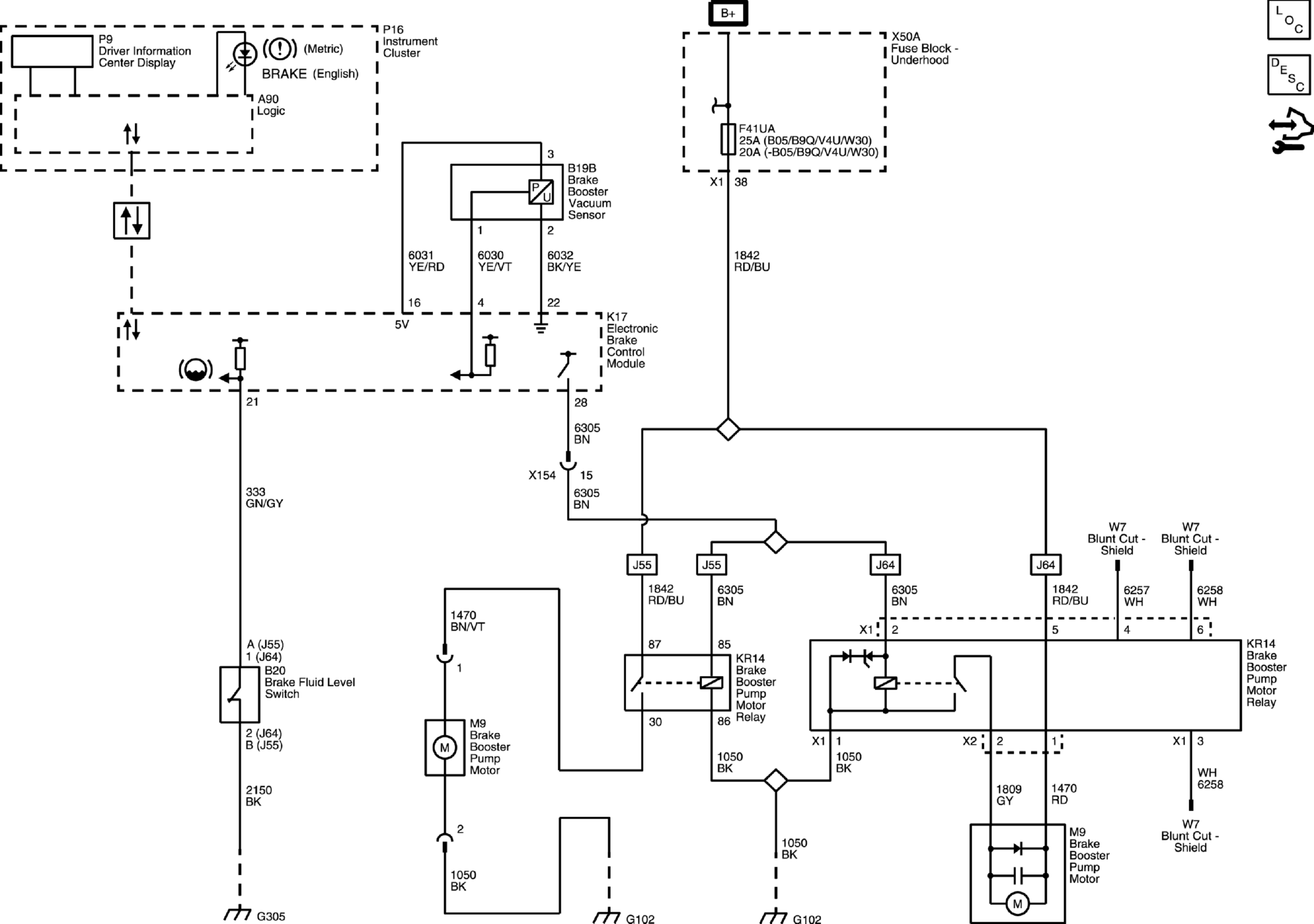

Home >> Cadillac >> 2019 >> XTS Livery >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Hydraulic Brakes >> Schematic and Wiring Diagrams >> Hydraulic Brake Wiring Schematics >> Hydraulic Brake (-CZ2)
