Installation Procedure

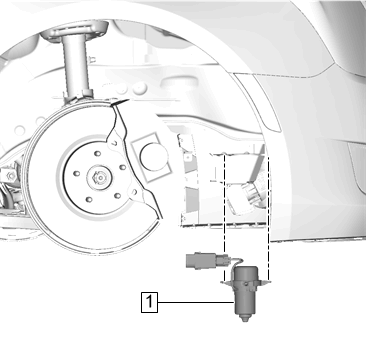

  1. GM4738342Courtesy of GENERAL MOTORS COMPANY

    Install the power brake booster pump and relay (1).

  2. GM2753549Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Install the power brake booster pump nuts (1) and tighten to 10 N.m (89 lb in).

  3. GM2560896Courtesy of GENERAL MOTORS COMPANY

    Connect the power brake booster pump inlet pipe quick connect (1).

  4. Install the power brake booster pump inlet pipe retainer (2).
  5. Connect the power brake booster pump electrical connector.
  6. GM2753548Courtesy of GENERAL MOTORS COMPANY

    Install the power brake booster pump splash shield.

  7. Install the power brake booster pump splash shield push pins (1).
  8. Install the right front wheelhouse front liner. Front Wheelhouse Front Liner Replacement .
