Installation Procedure

Install the power brake booster pump inlet pipe to the vehicle.
Courtesy of GENERAL MOTORS COMPANY

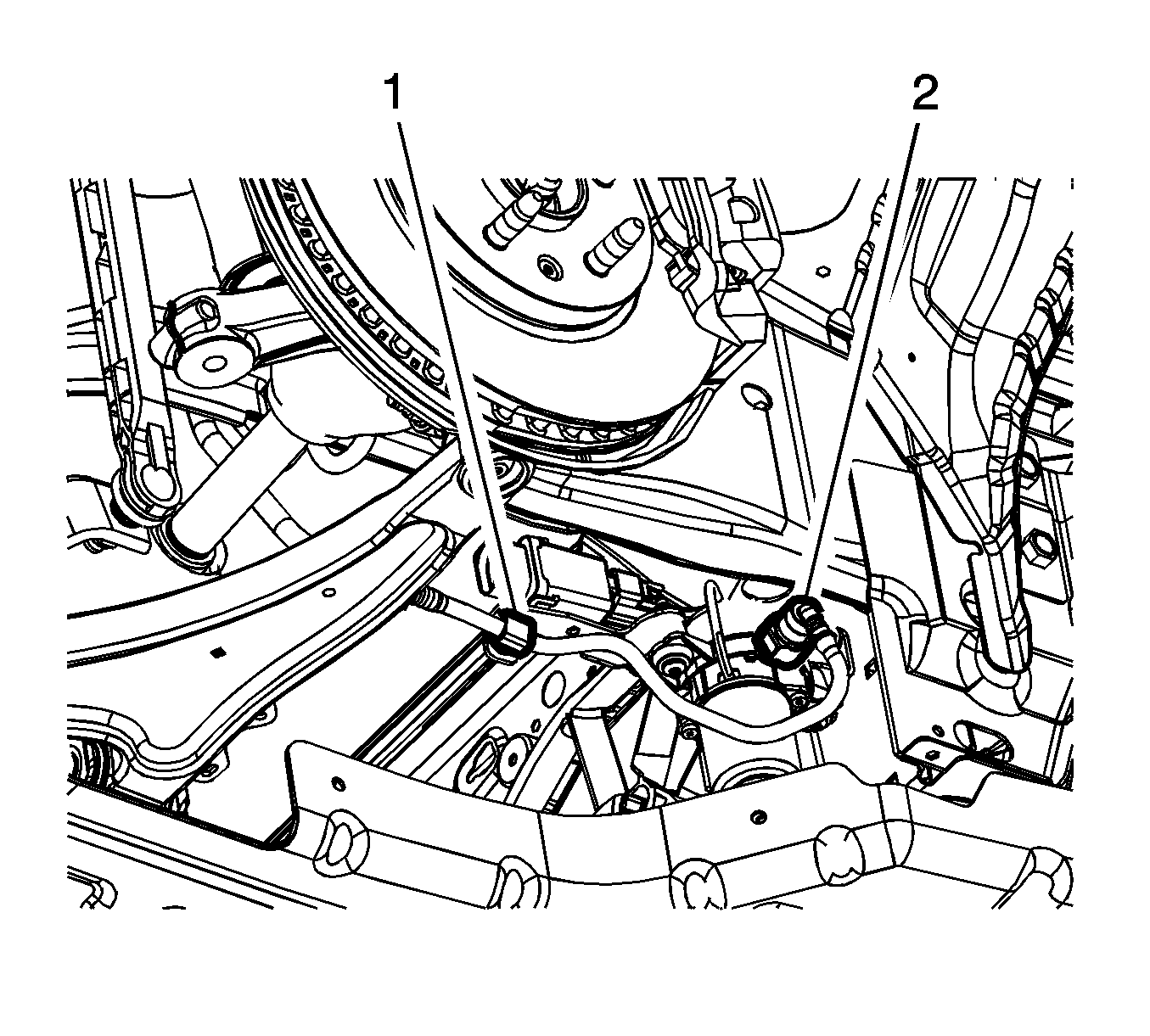

Install the power brake booster pump inlet pipe retainer (1) to the power brake booster pump bracket.
Connect the power brake booster pump inlet pipe quick connect (2).
Courtesy of GENERAL MOTORS COMPANY

Install the power brake booster pump splash shield.
Install the power brake booster pump splash shield push pins (1).
Courtesy of GENERAL MOTORS COMPANY

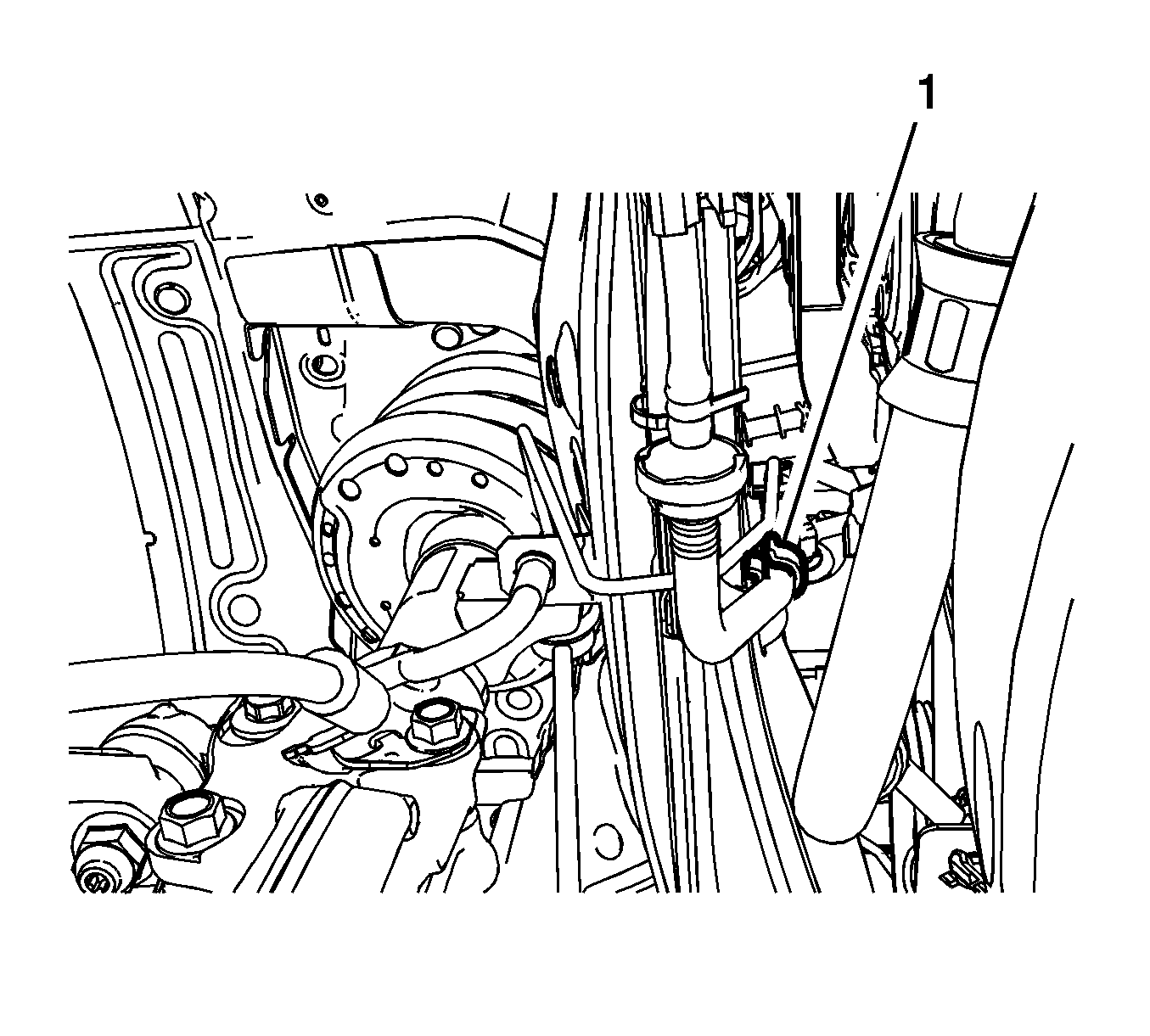

Install the power brake booster pump inlet pipe clip (1) to the power brake booster pump hose.
Install the right front wheelhouse front liner. Refer to Front Wheelhouse Front Liner Replacement .
Courtesy of GENERAL MOTORS COMPANY

Lower the vehicle.

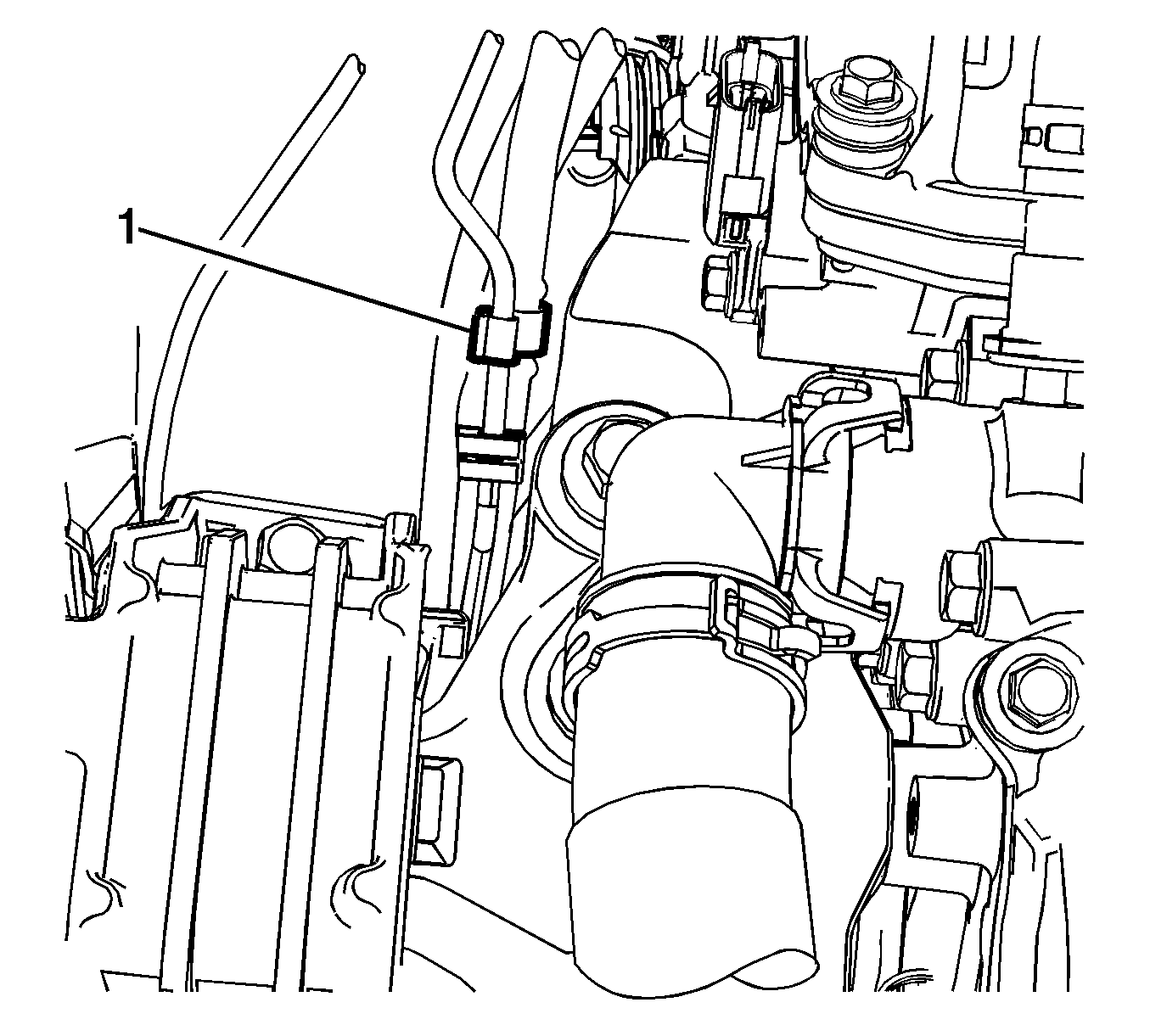

Install the power brake booster pump inlet pipe to the retainer (1) on the right front brake pipe.
Courtesy of GENERAL MOTORS COMPANY

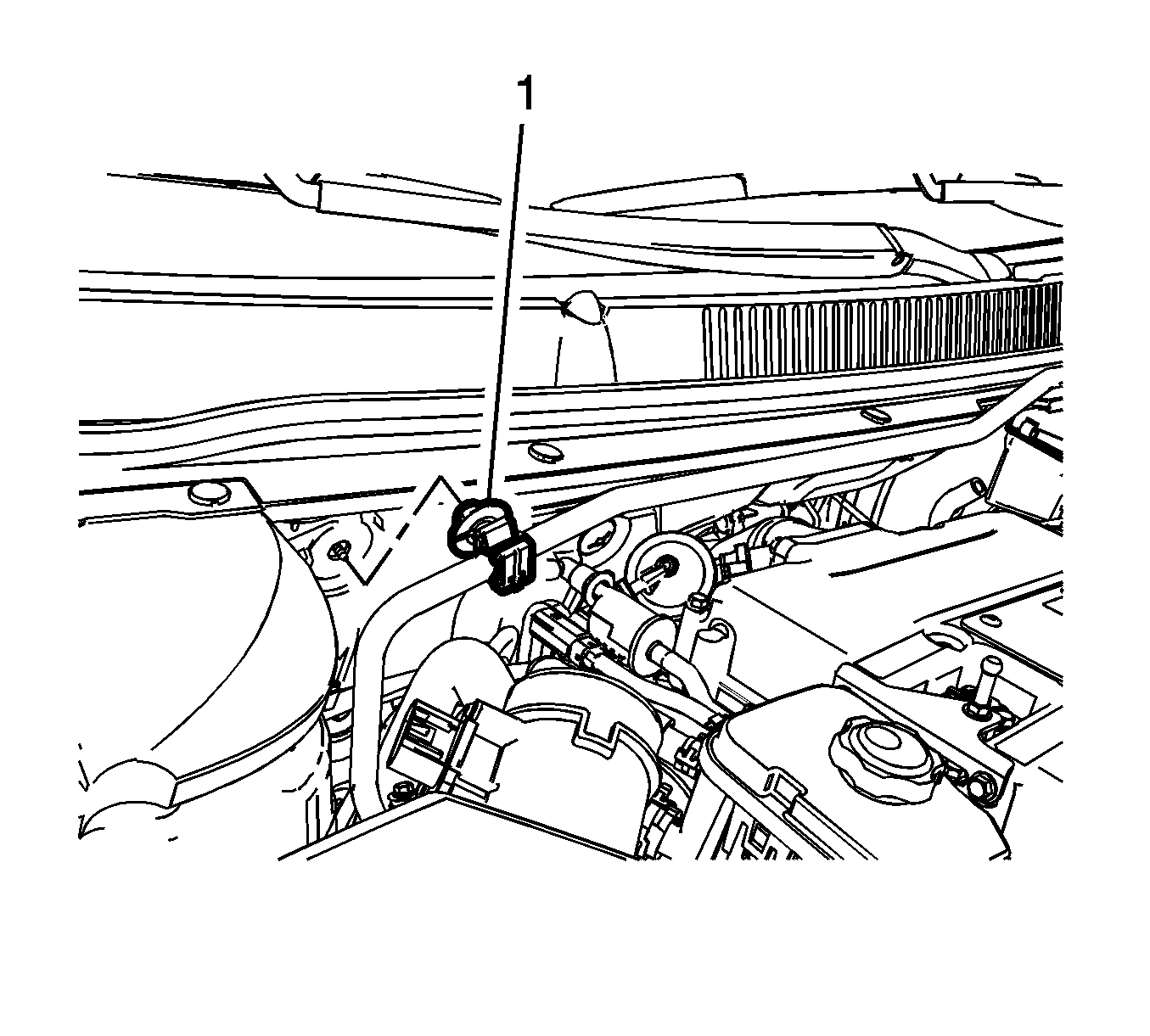

Install the power brake booster pump inlet pipe retainer (1) to the dash panel stud.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
A small amount of alcohol may be used as a lubricant. Do not use soap.

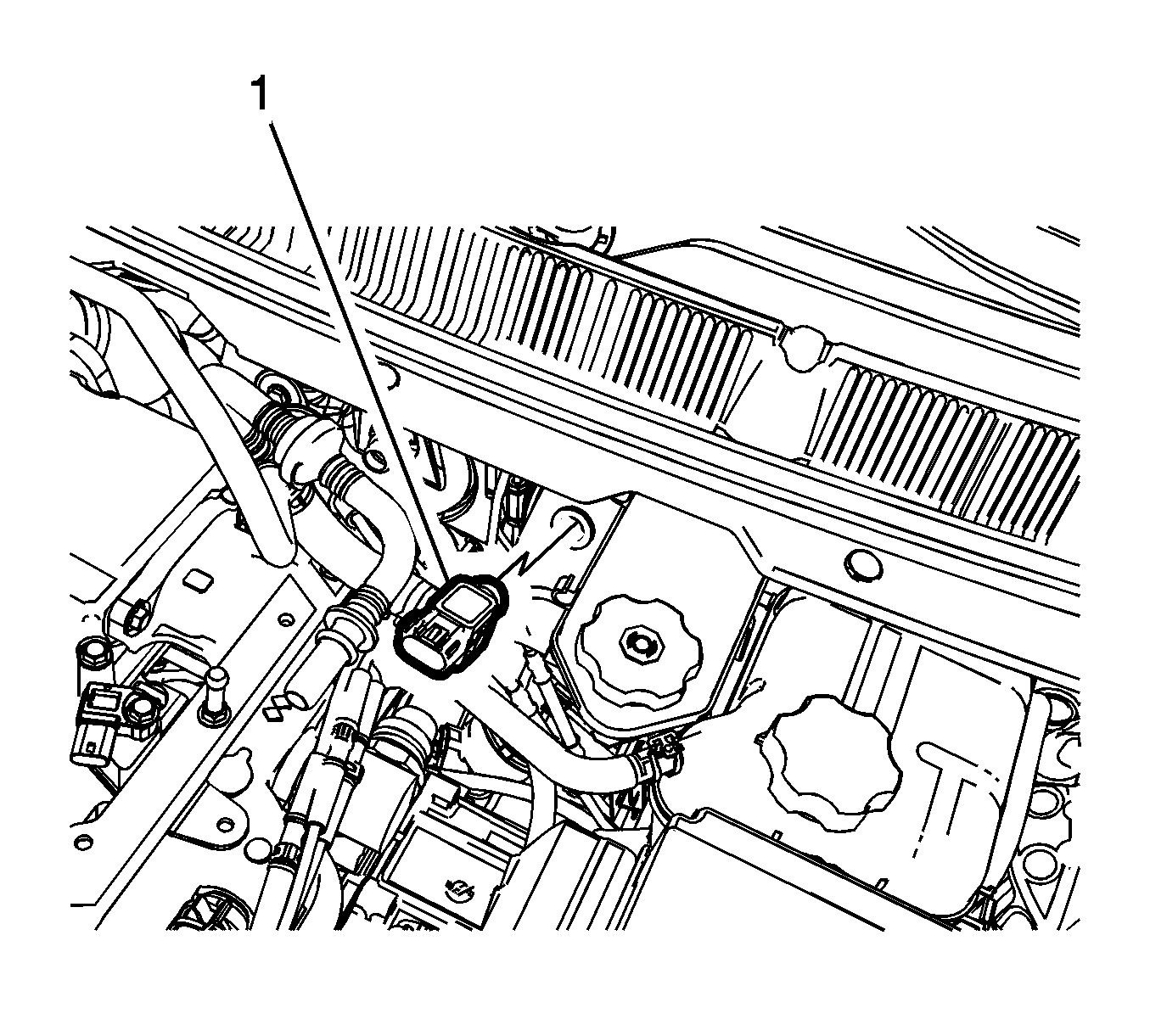

Install the power brake booster vacuum sensor (1) to the power vacuum brake booster.
Connect the power brake booster vacuum sensor electrical connector.
Courtesy of GENERAL MOTORS COMPANY

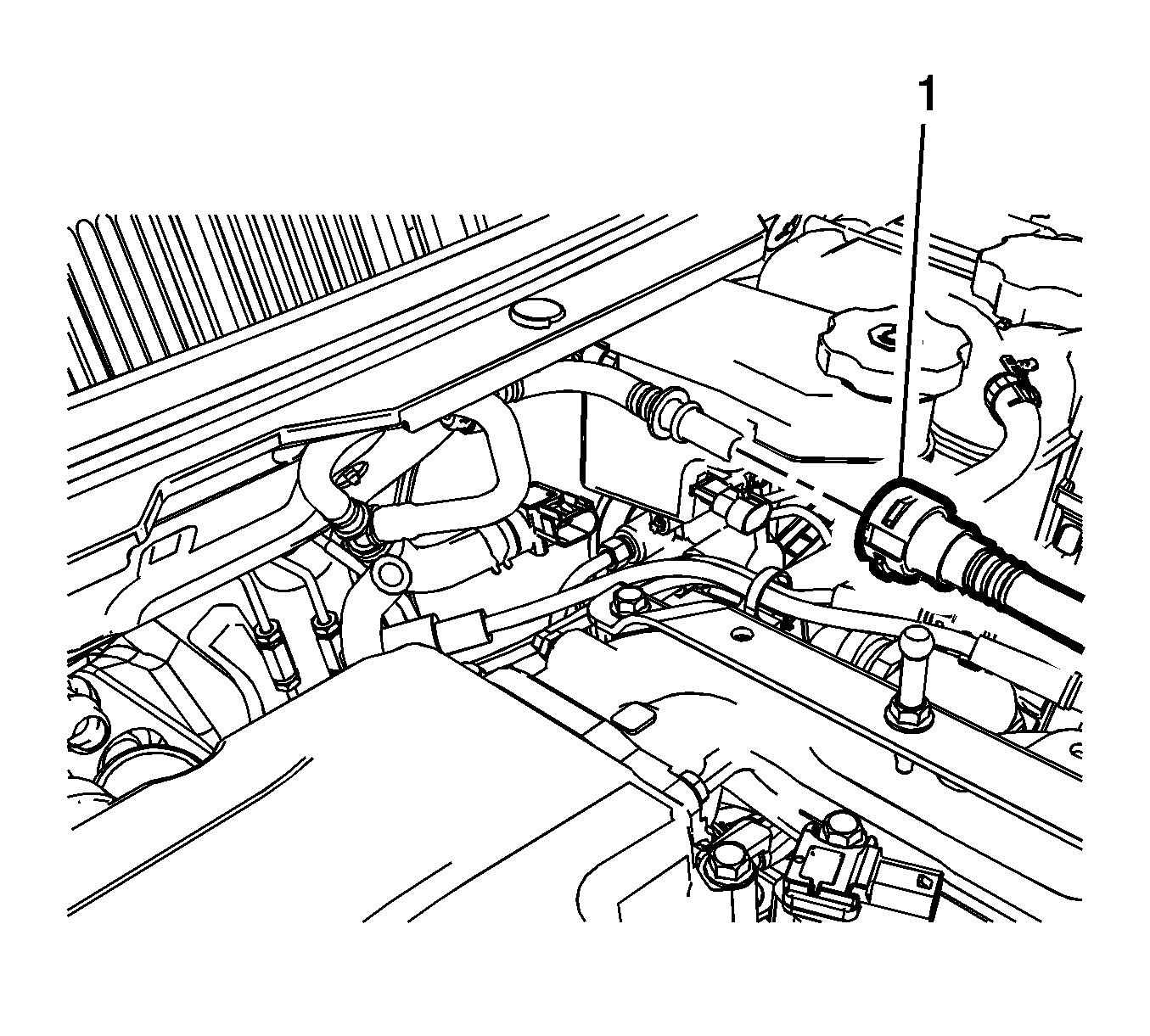

Connect the power brake booster vacuum pipe quick connect (1).
Courtesy of GENERAL MOTORS COMPANY

Install the air cleaner outlet rear duct (2). Refer to Air Cleaner Outlet Rear Duct Replacement (LF3) .
Install the air cleaner outlet resonator. Refer to Air Cleaner Outlet Resonator Replacement (LF3) .
