Removal Procedure

  1. Without draining the coolant and without disconnecting the hoses, position aside the radiator surge tank. Refer to Radiator Surge Tank Replacement (LFX, LF3) .
  2. Disconnect the brake fluid level indicator switch electrical connector.

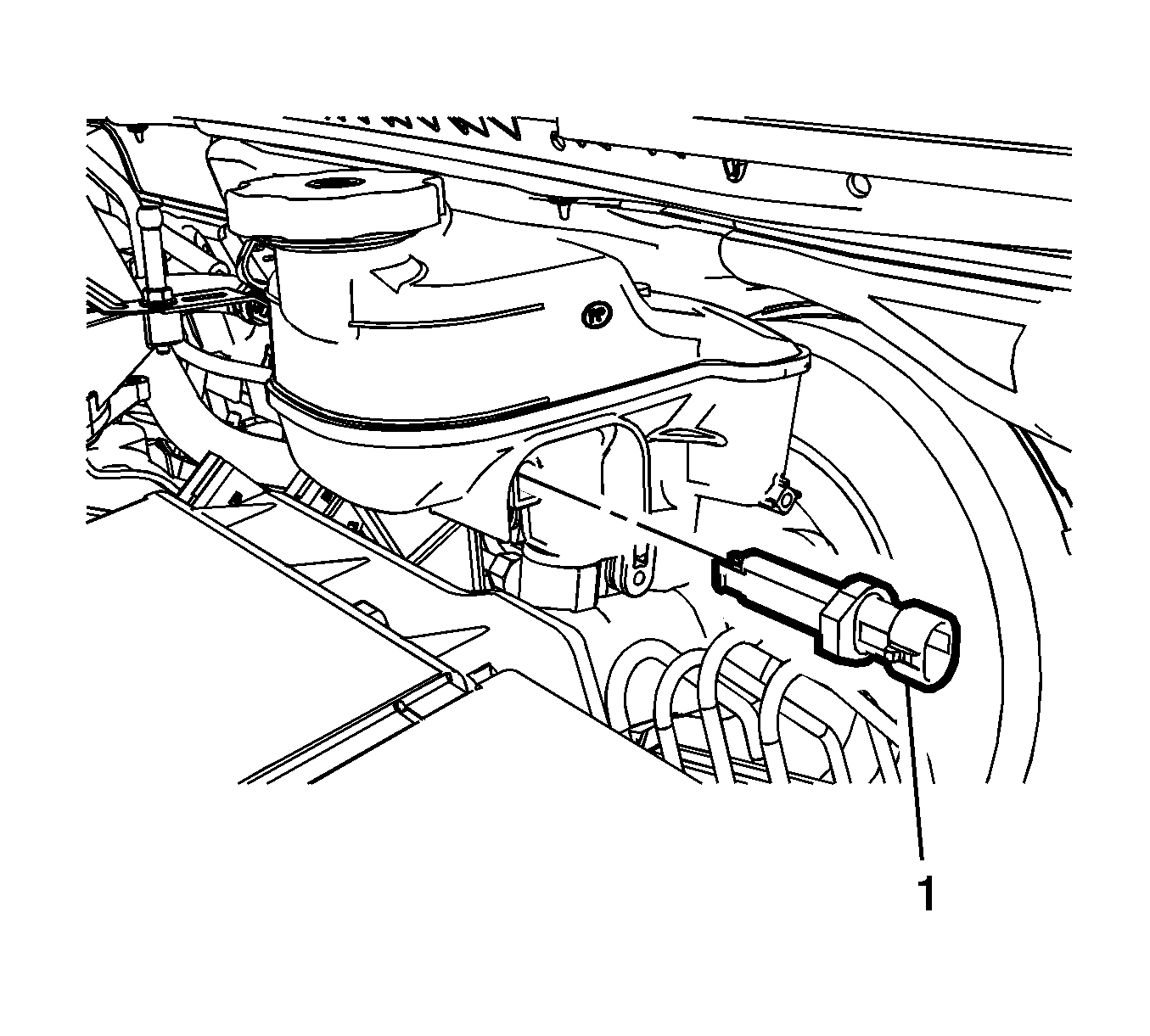

  3. GM2756211Courtesy of GENERAL MOTORS COMPANY

    Compress the locking tabs on the inboard side of the master cylinder reservoir and remove the brake fluid level indicator switch (1).
