Hood Primary Latch Release Cable Handle Replacement

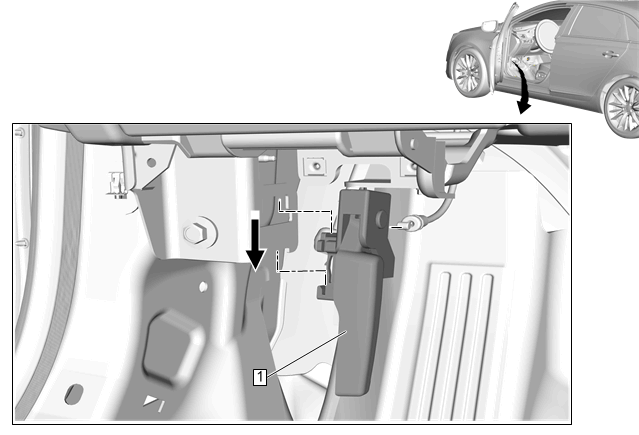

GM4866608Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Side Door Sill Garnish Molding Replacement
1 Hood Primary Latch Release Cable Handle

Procedure

  1. Pull down the hood primary latch release cable handle.
  2. Release the cable from the handle.
