Rear Compartment Lid Replacement

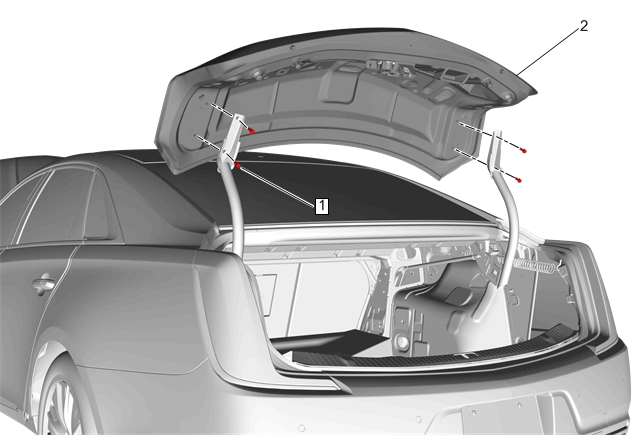

GM4787295Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Rear Compartment Lid Inner Panel Trim Replacement
1 Rear Compartment Lid Bolt [4x]
CAUTION:

Refer to Fastener Caution .


tighten
22 N.m (16 lb ft)
2 Rear Compartment Lid

Procedure

  1. Disconnect the electrical connector.
  2. Transfer components as necessary.
  3. Rear Compartment Lid Adjustment
