Hood Hinge Replacement

Courtesy of GENERAL MOTORS COMPANY

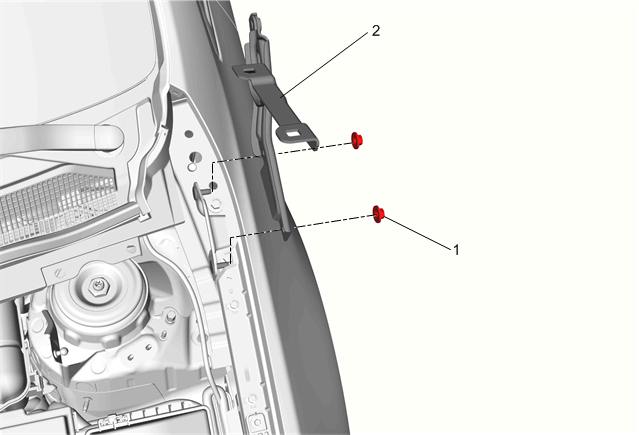

Callout	Component Name
Preliminary Procedures Hood Replacement Front Compartment Side Sight Shield Replacement
1	Hood Hinge Nut [2x] CAUTION: Refer to Fastener Caution . tighten 22 N.m (16 lb ft)
2	Hood Hinge Procedure Hood Adjustment

Callout

Component Name

Preliminary Procedures

Hood Hinge Nut [2x]

CAUTION:

tighten
22 N.m (16 lb ft)

Hood Hinge
Procedure
Hood Adjustment
