Installation Procedure

GM4784657Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Front Fender (3) - Install
  2. Headlamp Bolt (2) - Install and tighten 2.5 N.m (22 lb in)
  3. Front Fender Bolt (1) - Install and tighten [3x] 9 N.m (80 lb in)
  4. GM4784654Courtesy of GENERAL MOTORS COMPANY

    Front Fender Bolt (3) - Install and tighten [3x] 9 N.m (80 lb in)

  5. Front Fender Nut (2) - Install and tighten 9 N.m (80 lb in)
  6. Headlamp Bolt (1) - Install and tighten 2.5 N.m (22 lb in)
  7. GM4784653Courtesy of GENERAL MOTORS COMPANY

    Front Fender Upper Rear Molding (1) - Install - Front Fender Upper Rear Molding Replacement

  8. GM4784343Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia (1) - Install - Front Bumper Fascia Replacement

  9. GM4784340Courtesy of GENERAL MOTORS COMPANY

    Install both front wheelhouse liners (1). Front Wheelhouse Front Liner Replacement

  10. GM4784652Courtesy of GENERAL MOTORS COMPANY

    Rocker Panel Molding (1) - Install - Rocker Panel Molding Replacement

  11. GM4784305Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Grille Panel (1) - Install - Air Inlet Grille Panel Replacement

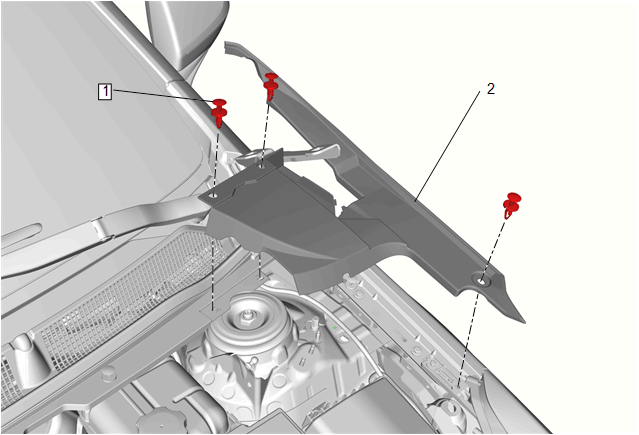

  12. GM4783149Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Side Sight Shield (2) - Install - Front Compartment Side Sight Shield Replacement

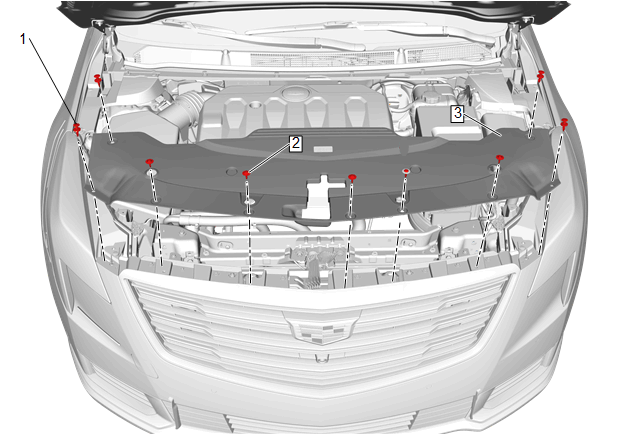

  13. GM4783422Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Front Sight Shield (3) - Install - Front Compartment Front Sight Shield Replacement
