Instrument Panel Trim Panel Replacement - Left Side

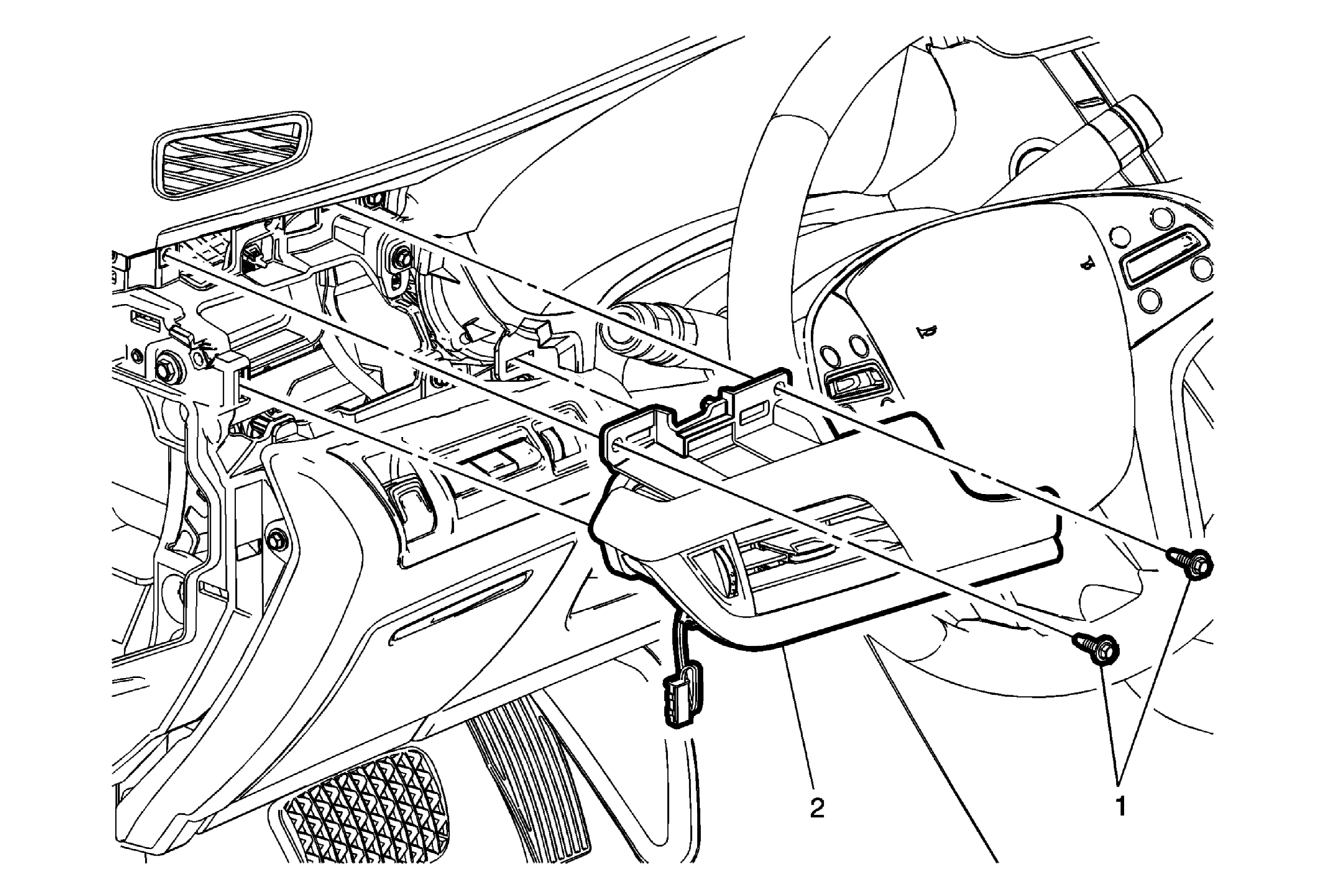

GM2752505Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the instrument panel side trim panel. Refer to Instrument Panel Side Trim Panel Replacement .
  2. Remove the driver instrument panel molding. Refer to Instrument Panel Molding Replacement - Driver Side .
1 Instrument Panel Trim Panel Fasteners (Qty: 2)
CAUTION:

Refer to Fastener Caution .
2 Instrument Panel Trim Panel - Left Side

Procedure

  1. Use a flat bladed plastic trim tool in order to release the retainers securing the trim panel to the instrument panel assembly.
  2. Disconnect the electrical connection.
