Removal Procedure

  1. Disconnect the dampener from the instrument panel compartment door and release the door past the stop. Instrument Panel Compartment Replacement

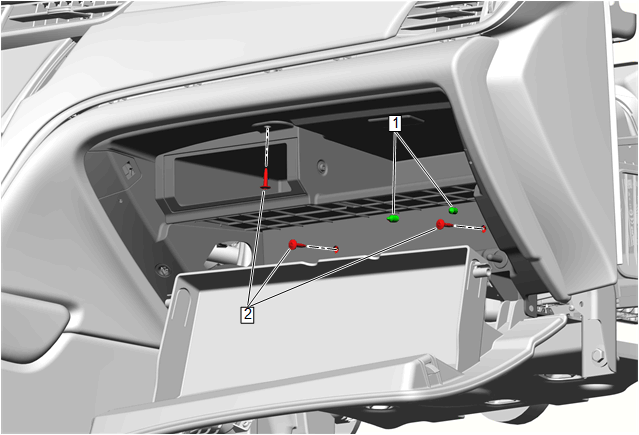

  2. GM5145509Courtesy of GENERAL MOTORS COMPANY

    Disconnect the instrument panel compartment door latch actuator mounts (1).

  3. Instrument Panel Compartment Bolt (2) - Remove [3x]
  4. GM5145510Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Shelf (1) - Remove

  5. Transfer components as necessary.
