Installation Procedure

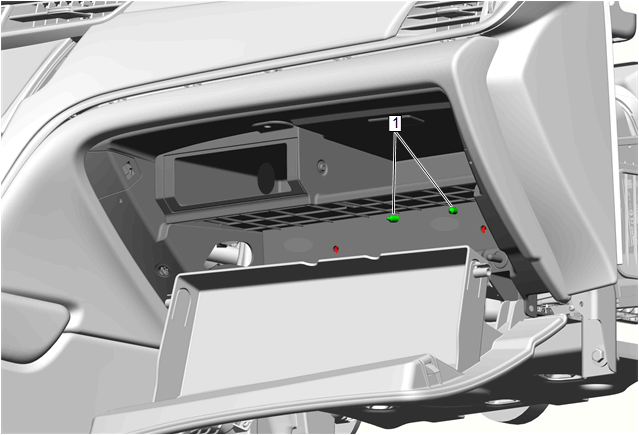

  1. GM5145522Courtesy of GENERAL MOTORS COMPANY

    Connect the instrument panel compartment door latch actuator mounts (1).

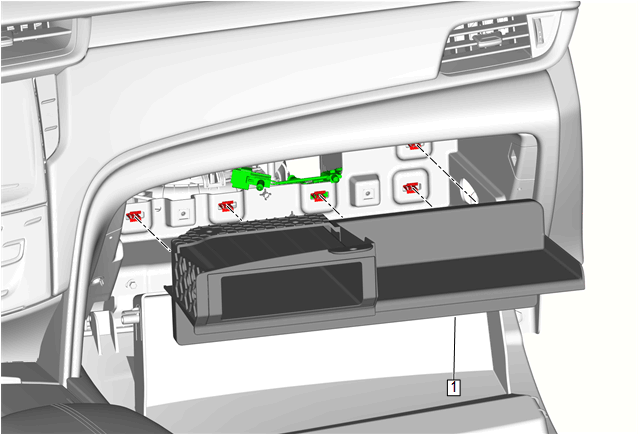

  2. GM5145510Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Shelf (1) - Install

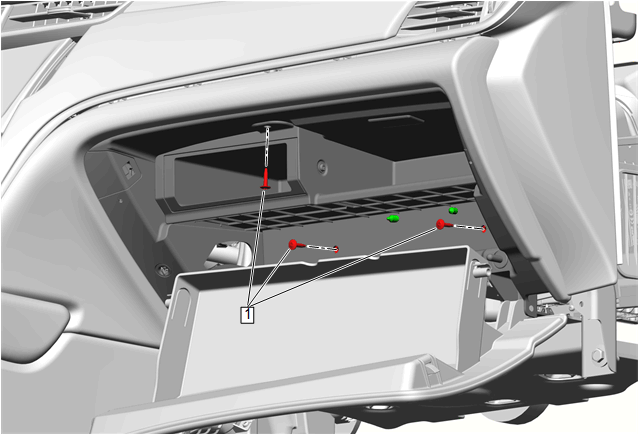

  3. GM5145519Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Bolt (1) - Install and tighten [3x] 2.5N.m (22 lb in)

  4. Install the door past the stop and connect the dampener to the instrument panel compartment door. Instrument Panel Compartment Replacement
