Installation Procedure

Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

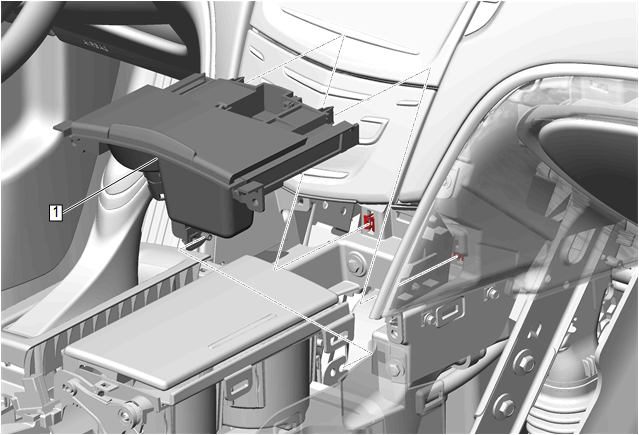

Front Floor Console Front Ashtray (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Move the slot on the top of the HVAC duct (1) slightly to the right to help install the alignment pin (2).
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Front Floor Console Front Ashtray Fastener (1) - Install and tighten [3x] 2.5N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Cup Holder Plate (3) - Install - Front Floor Console Cup Holder Plate Replacement
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Place the transmission control in the park position and release parking brake.

Transmission Control Lever Knob (5) - Install - Transmission Control Lever Knob Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Compartment (2) - Install - Front Floor Console Compartment Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Trim Plate (1) - Install - Front Floor Console Trim Plate Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Left Side (1) - Install - Front Floor Console Extension Panel Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Right Side (1) - Install - Front Floor Console Extension Panel Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Trim Plate (1) - Install - Instrument Panel Lower Trim Plate Replacement
