Automatic Transmission - 6T70 (M7U M7W), 6T75 (M7V), Or 6T80 (Mhm) - Schematic Wiring Diagrams
>>
Schematic and Wiring Diagrams
>>
Automatic Transmission Controls Wiring Schematics
>>

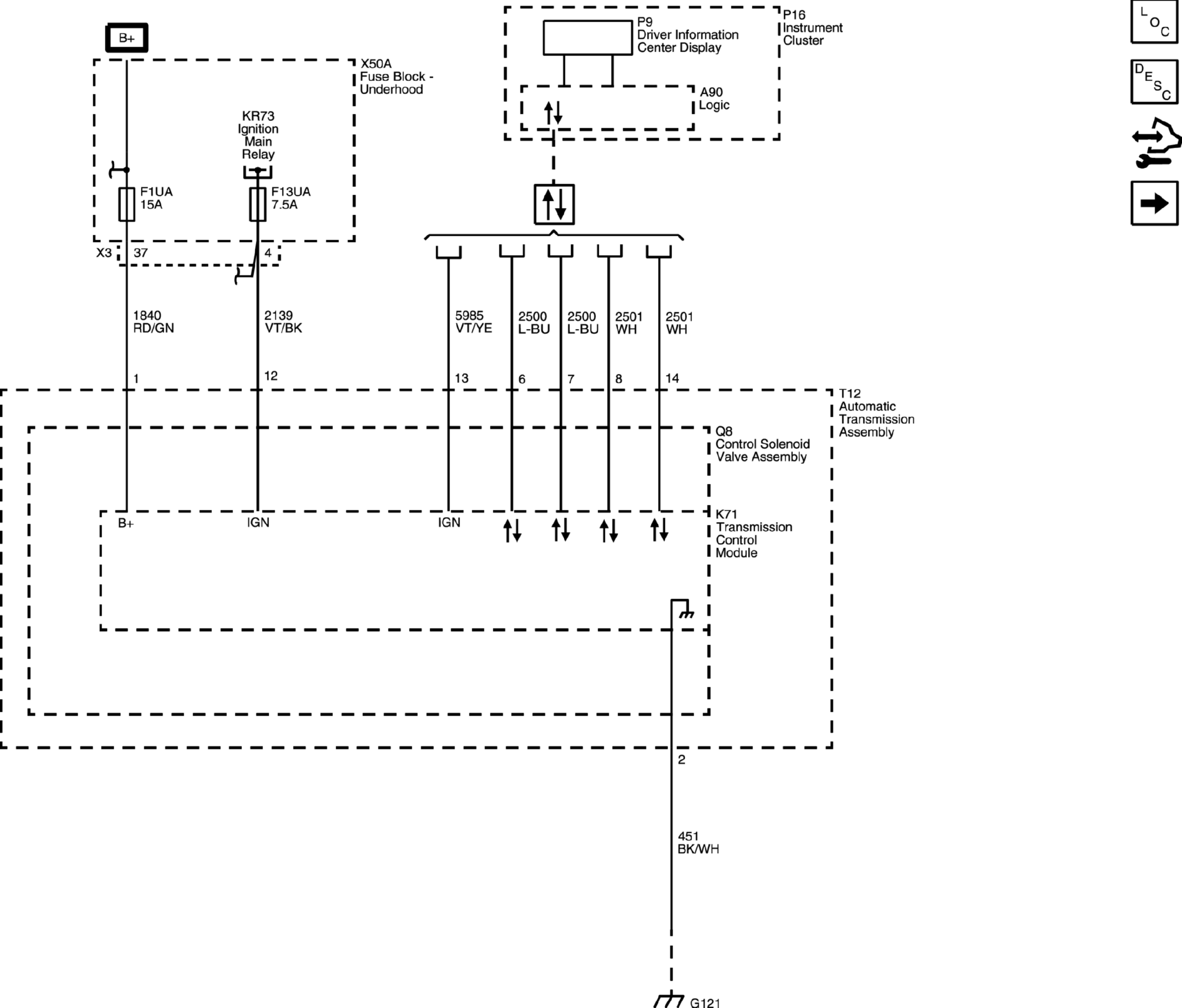

Module Power, Ground, Data Communication and DIC

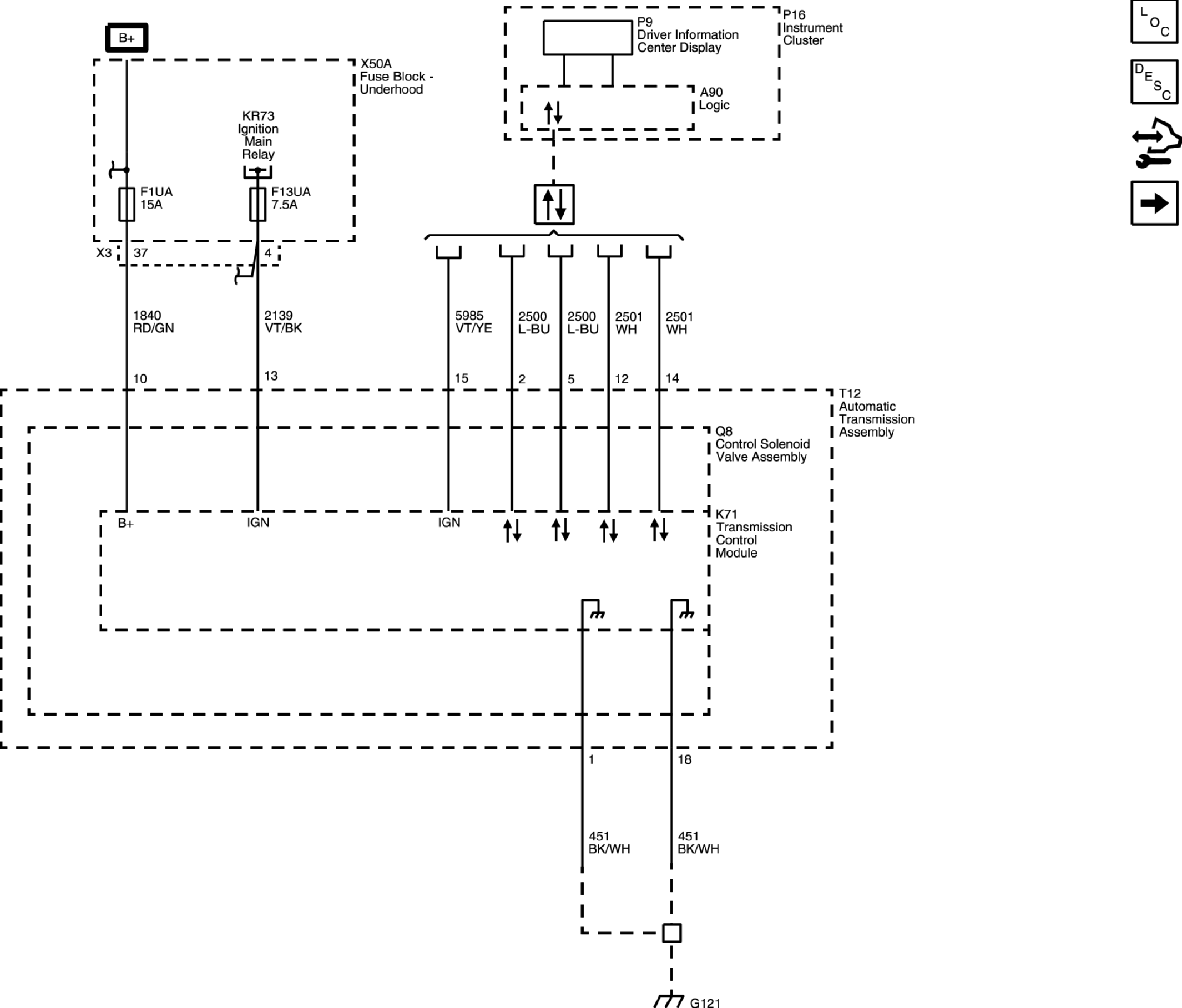

Module Power, Ground, Data Communication and DIC
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
