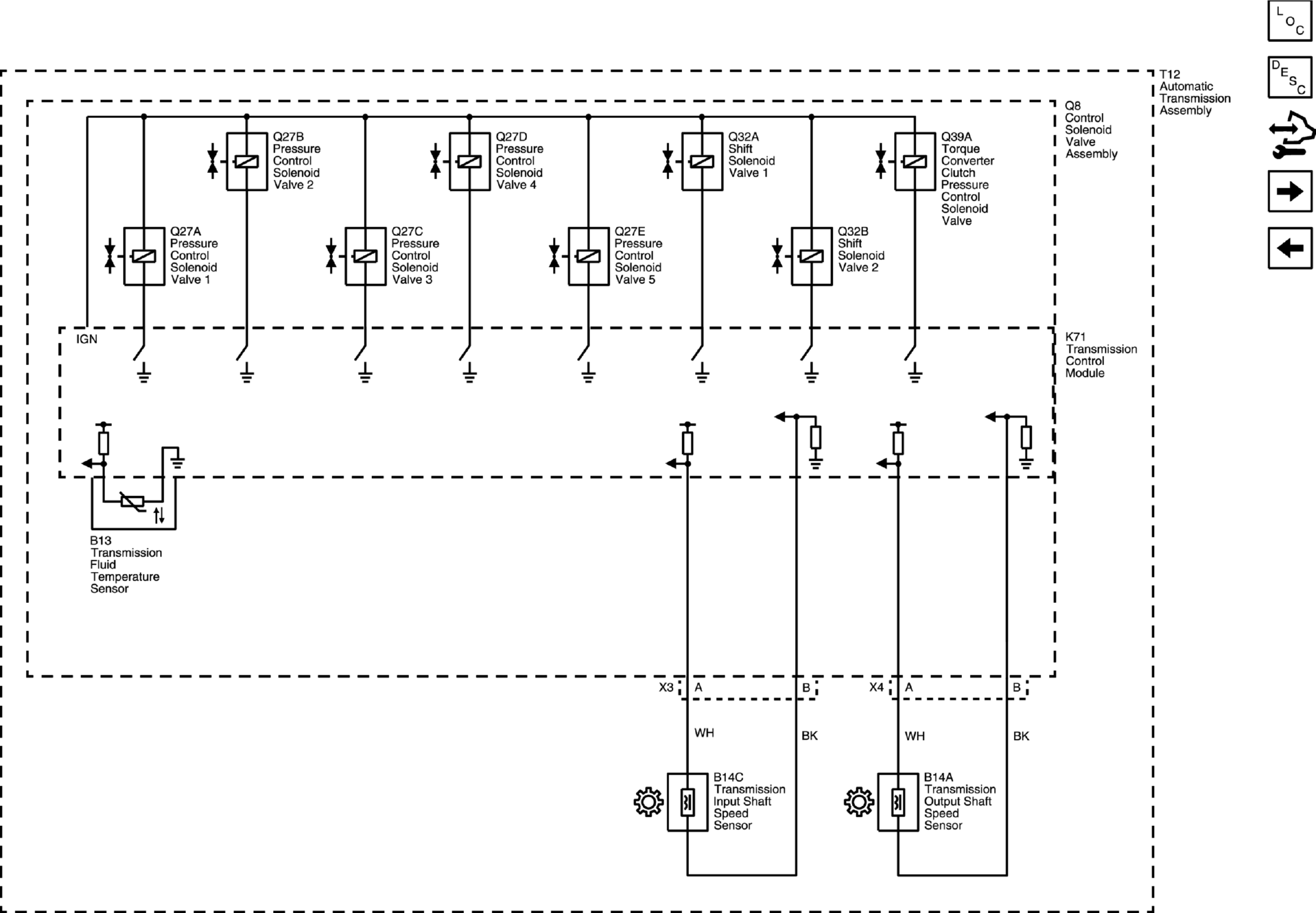

Fluid Temperature and Speed Sensors, Valve Position, Pressure and Shift Controls

GM4901910Courtesy of GENERAL MOTORS COMPANY


GM4901914Courtesy of GENERAL MOTORS COMPANY
