Automatic Transmission Manual Shift Auxiliary Position Switch Replacement

Courtesy of GENERAL MOTORS COMPANY

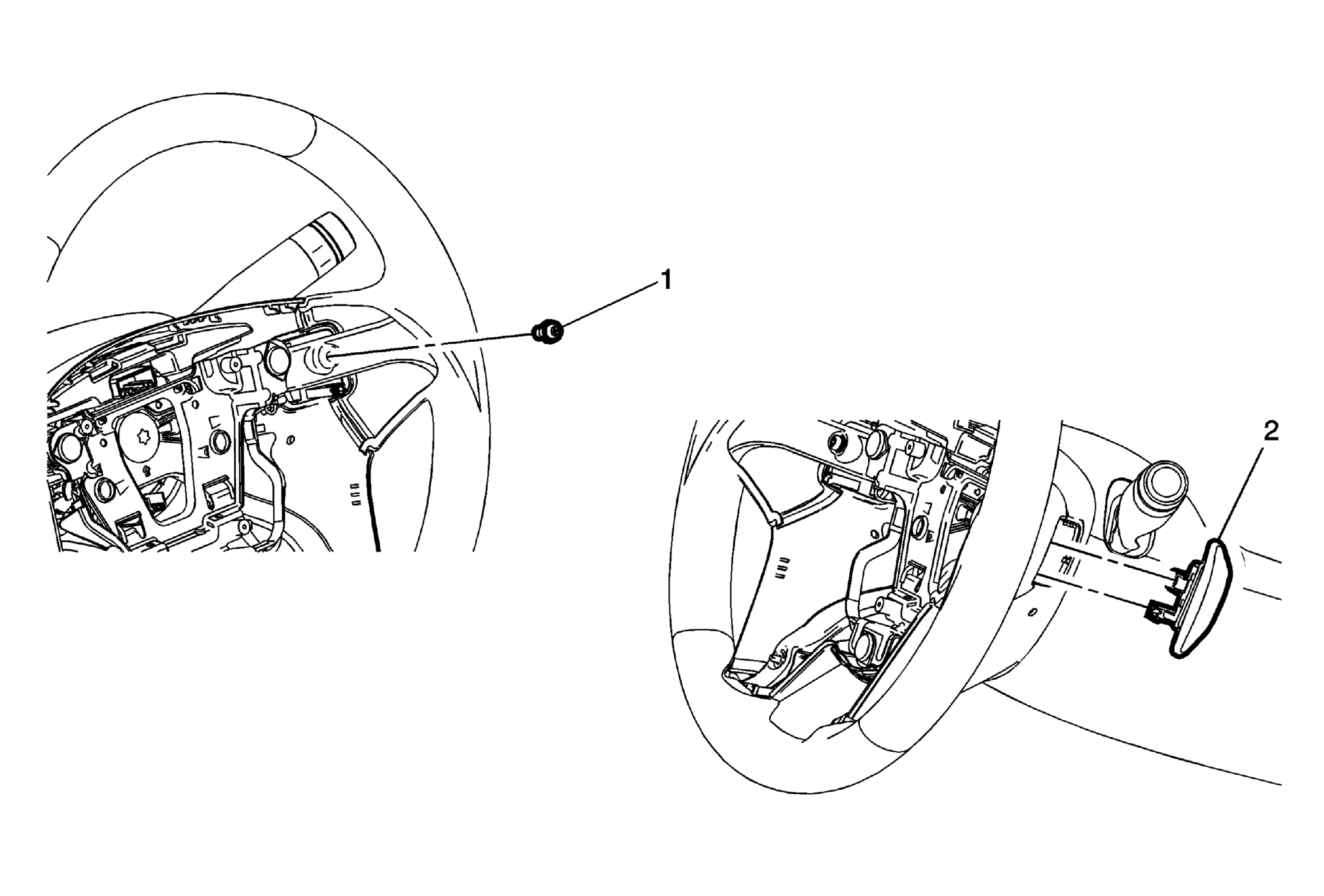

Callout	Component Name
Preliminary Procedures Remove the steering wheel spoke cover. Refer to Steering Wheel Spoke Cover Replacement . Disconnect electrical connectors.
1	Manual Shift Auxiliary Position Switch Fastener (Qty: 2) Tighten 2.5 N.m (22 lb in)
2	Manual Shift Auxiliary Position Switch (Qty: 2) Procedure Ensure each manual shift auxiliary position switch is properly seated on the steering wheel during installation.

Callout

Component Name

Preliminary Procedures

Remove the steering wheel spoke cover. Refer to Steering Wheel Spoke Cover Replacement .
Disconnect electrical connectors.

Manual Shift Auxiliary Position Switch Fastener (Qty: 2)
Tighten
2.5 N.m (22 lb in)

Manual Shift Auxiliary Position Switch (Qty: 2)
Procedure
Ensure each manual shift auxiliary position switch is properly seated on the steering wheel during installation.
