X700 Left Rear Door Harness to Body Harness

WARNING: This page is about a different car, the 2018 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY	Courtesy of GENERAL MOTORS COMPANY

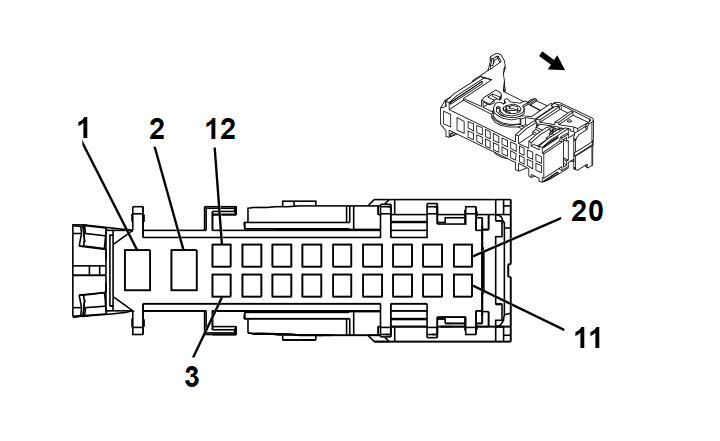

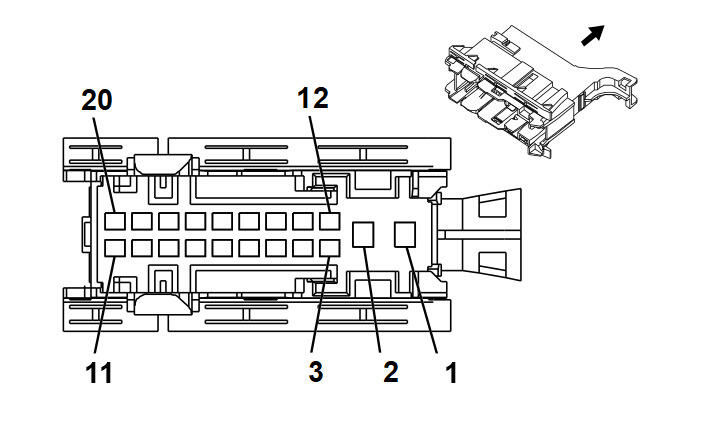

Connector Part Information Harness Type: Left Rear Door OEM Connector: 13678789 Service Connector: Service by Harness - See Part Catalog Description: 20-Way F 4.8 Timer, 1.5 DSQ Series (GY)	Connector Part Information Harness Type: Body OEM Connector: 13680032 Service Connector: 13577518 Description: 20-Way M 1.5, 5.8 TTS Series (GY)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	Not Required	J-35616-14 (GN)	No Tool Required	Not Required	Not Required	Not Required	Not Required
II	Not Required	J-35616-42 (RD)	No Tool Required	Not Required	Not Required	Not Required	Not Required
III	13575775	J-35616-34 (YE)	J-38125-560	Not Available	Not Available	Not Available	Not Available
IV	13575857	J-35616-32 (OR)	J-38125-36	Not Available	Not Available	Not Available	Not Available
V	19368263	J-35616-3 (GY)	J-38125-12A	964265-2	Lear 28	C	A
VI	19368263	J-35616-3 (GY)	J-38125-12A	964265-2	Lear 28	E	C

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	1.5	RD/WH	1340	II	-	Battery Positive Voltage	1	2.5	RD/WH	1340	IV	-
2	1.5	BK	2150	II	-	Ground	2	1.5	BK	2150	IV	-
3	0.35	GN/GY	6135	I	-	Local Interconnect Network Serial Data Bus 4	3	0.35	GN/GY	6135	III	-
4	0.35	YE	6817	I	-	LED Backlight Dimming Control	4	0.35	YE	6817	III	-
5	0.35	WH/YE	7557	I	-	LED Ambient Lighting Control 1	5	0.35	WH/YE	7557	III	-
6	0.5	BN/YE	6157	I	-	Left Rear Door Handle Switch Signal	6	0.35	BN/YE	6157	III	-
7	0.35	BN/WH	3269	I	-	Child Security Lock Motor Status Signal Left Rear	7	0.35	BN/WH	3269	III	-
8	0.75	BN/YE	294	I	-	Door Lock Actuator Unlock Control	8	0.75	BN/YE	294	VI	-
9	0.75	GY	295	I	-	Door Lock Actuator Lock Control	9	0.75	GY	295	VI	-
10	0.5	GY/GN	5996	I	-	Driver Outside Rear View Mirror Puddle Lamp Control	10	0.35	GY/GN	5996	III	-
11	0.75	WH/BU	3266	I	-	Child Security Lock Motor Lock Control	11	0.75	WH/BU	3266	VI	-
12 - 13	-	-	-	-	-	Not Occupied	12 - 13	-	-	-	-	-
14	1	GN	199	I	-	Left Rear Speaker Control (+)	14	1	GN	199	V	-
15	1	GN/BK	116	I	-	Left Rear Speaker Signal (-)	15	1	GN/BK	116	V	-
16	-	-	-	-	-	Not Occupied	16	-	-	-	-	-
17	0.35	GY	157	I	-	Interior Lamp Control	17	0.35	GY	157	III	-
18 - 19	-	-	-	-	-	Not Occupied	18 - 19	-	-	-	-	-
20	0.75	BK	850	I	-	Ground	20	0.75	BK	850	VI	-
