X505 Driver Door Harness to Driver Door Trim Harness

WARNING: This page is about a different car, the 2018 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY	Courtesy of GENERAL MOTORS COMPANY

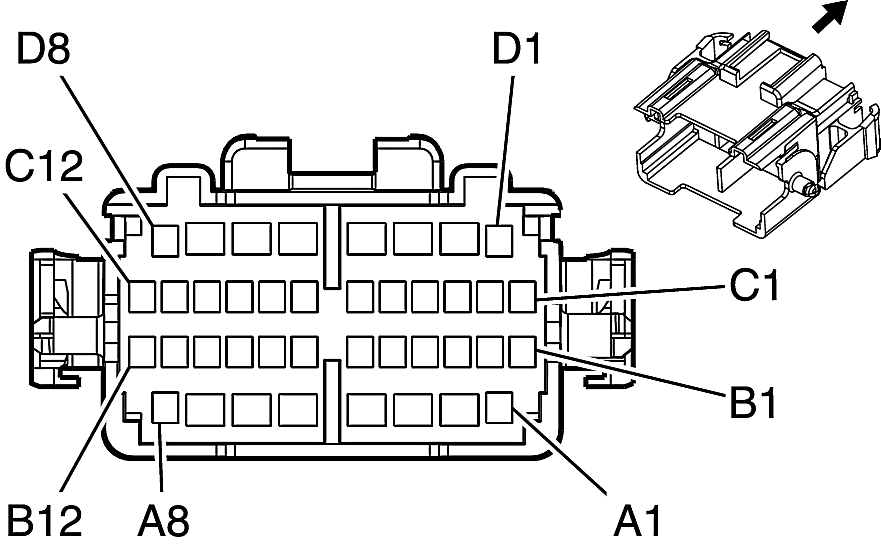

Connector Part Information Harness Type: Driver Door OEM Connector: 15401211 Service Connector: Service by Harness - See Part Catalog Description: 40-Way F 1.5, 2.8 GT Series (GY)	Connector Part Information Harness Type: Driver Door Trim OEM Connector: 15463191 Service Connector: Service by Harness - See Part Catalog Description: 40-Way M 150, 280 GT Series (GY)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	Not Required	J-35616-14 (GN)	No Tool Required	Not Required	Not Required	Not Required	Not Required
II	Not Required	J-35616-4A (PU)	No Tool Required	Not Required	Not Required	Not Required	Not Required
III	Not Required	J-35616-3 (GY)	No Tool Required	Not Required	Not Required	Not Required	Not Required
IV	Not Required	J-35616-5 (PU)	No Tool Required	Not Required	Not Required	Not Required	Not Required

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
A1	0.35	GY	157	I	-	Interior Lamp Control	A1	0.5	GY	157	III	-
A2	0.35	GN/YE	6134	II	-	Local Interconnect Network Serial Data Bus 3	A2	0.35	GN/YE	6134	IV	-
A3	0.5	RD/VT	1940	II	-	Battery Positive Voltage	A3	0.35 0.5	RD/VT RD/VT	1940 1940	IV IV	UVH+DNV/DX1+A44 DWW-UVH-A44
A4 - A6	-	-	-	-	-	Not Occupied	A4 - A6	-	-	-	-	-
A7	0.35	YE	6817	II	-	LED Backlight Dimming Control	A7	0.35	YE	6817	IV	-
A8	0.75	BK	850	I	-	Ground	A8	0.75	BK	850	III	-
B1	0.35	WH/YE	7557	I	-	LED Ambient Lighting Control 1	B1	0.5	WH/YE	7557	III	-
B2	0.5	GN/WH	7530	I	-	Local Interconnect Network Serial Data Bus 8	B2	0.5	GN/WH	7530	III	-
B3	0.35	WH/VT	3270	I	-	Driver Door Lock Motor Status Signal	B3	0.35	WH/VT	3270	III	-
B4	0.5	GN/BK	3396	I	-	Passenger Mirror Motor Right (+) Left (-) Control	B4	0.5	GN/BK	3396	III	-TSP
B5	0.5	WH	3398	I	-	Passenger Mirror Motor Common Control	B5	0.5	WH	3398	III	-TSP
B6	0.5	YE/VT	3397	I	-	Passenger Mirror Motor Up (+) Down (-) Control	B6	0.5	YE/VT	3397	III	-TSP
B7	0.5	BN/BK	3389	I	-	Driver Mirror Motor Right (+) Left (-) Control	B7	0.35 0.5	BN/BK BN/BK	3389 3389	III III	DWW-UVH-A44 UVH+DNV/DX1+A44
B8	0.5	YE/BN	3391	I	-	Driver Mirror Motor Common Control	B8	0.35 0.5	YE/BN YE/BN	3391 3391	III III	DWW-UVH-A44 UVH+DNV/DX1+A44
B9	0.5	VT/BU	3390	I	-	Driver Mirror Motor Up (+) Down (-) Control	B9	0.35 0.5	VT/BU VT/BU	3390 3390	III III	DWW-UVH-A44 UVH+DNV/DX1+A44
B10	-	-	-	-	-	Not Occupied	B10	-	-	-	-	-
B11	0.5	WH/YE	3395	I	-	Driver Mirror Position Sensor Left (-) Right (+) Signal	B11	0.35	WH/YE	3395	III	-
B12	0.5	VT/RD	3392	I	-	Driver Mirror Position Sensor 5V Reference	B12	0.35	VT/RD	3392	III	-
C1	0.35	BN/YE	780	I	-	Driver Door Lock Switch Lock Signal	C1	0.35	BN/YE	780	III	-
C2	0.35	BN/WH	781	I	-	Driver Door Lock Switch Unlock Signal	C2	0.35	BN/WH	781	III	-
C3	0.35	BU/VT	1124	I	-	Door Lock Key Switch Unlock Signal	C3	0.35	BU/VT	1124	III	-
C4	0.35	VT/BU	6189	I	-	Lift Glass/Rear Compartment Lid Interior Release Signal	C4	0.35	VT/BU	6189	III	-
C5	0.35	BK/BU	5978	I	-	Memory Switch Low Reference	C5	0.35	BK/BU	5978	III	-
C6	0.35	WH	615	I	-	Memory Seat Switch Signal 1	C6	0.35	WH	615	III	-
C7	0.35	BU/GN	614	I	-	Memory Seat Switch Set Signal	C7	0.35	BU/GN	614	III	-
C8	0.35	GN	3381	I	-	Power Window Switch Driver Express Signal	C8	0.35	GN	3381	III	-
C9	0.35	GY	3380	I	-	Power Window Switch Driver Down Signal	C9	0.35	GY	3380	III	-
C10	0.35	GN/WH	3379	I	-	Power Window Switch Driver Up Signal	C10	0.35	GN/WH	3379	III	-
C11	0.5	GY/BN	3394	I	-	Driver Mirror Position Sensor Up (+) Down (-) Signal	C11	0.35	GY/BN	3394	III	-
C12	0.5	BK/BN	3393	I	-	Driver Mirror Position Sensor Low Reference	C12	0.35	BK/BN	3393	III	-
D1 - D3	-	-	-	-	-	Not Occupied	D1 - D3	-	-	-	-	-
D4	0.5 0.5	VT/YE GY/WH	3409 3411	II II	DWW-UVH-A44 UVH+DNV/DX1+A44	Mirror Motor Fold Out Control Driver Mirror Motor Fold Out Control	D4	0.5 0.5	VT/YE GY/WH	3409 3411	IV IV	DWW-UVH-A44 UVH+DNV/DX1+A44
D5	0.5 0.5	WH/BN BU/WH	3410 3412	II II	DWW-UVH-A44 UVH+DNV/DX1+A44	Mirror Motor Fold In Control Driver Mirror Motor Fold In Control	D5	0.5 0.5	WH/BN BU/WH	3410 3412	IV IV	DWW-UVH-A44 UVH+DNV/DX1+A44
D6 - D8	-	-	-	-	-	Not Occupied	D6 - D8	-	-	-	-	-
