X442 Body Harness to Left Rear Suspension Harness (J55)
WARNING: This page is about a different car, the 2018 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

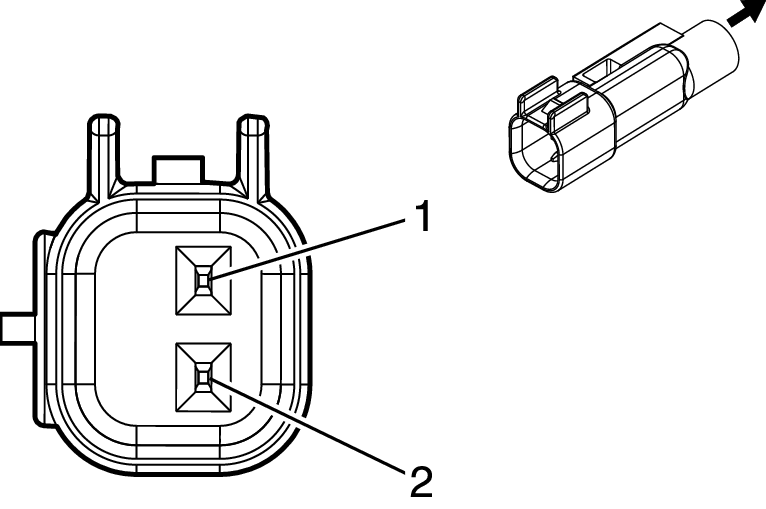

Connector Part Information
- Harness Type: Body
- OEM Connector: 7289-4204-30
- Service Connector: 19367739
- Description: 2-Way F 1.5 GT Series, Sealed (BK)
|
Connector Part Information
- Harness Type: Left Rear Suspension
- OEM Connector: 288041475286
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way M 1.5 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-14 (GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.5 |
GY/BK |
7127 |
I |
- |
Wheel Speed Sensor Control Left Rear |
1 |
0.000001 |
BN |
7127 |
II |
- |
| 2 |
0.5 |
BU |
884 |
I |
- |
Wheel Speed Sensor Signal Left Rear |
2 |
0.000001 |
BK |
884 |
II |
- |
