X301 Instrument Panel Harness to Floor Console Harness
WARNING: This page is about a different car, the 2018 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

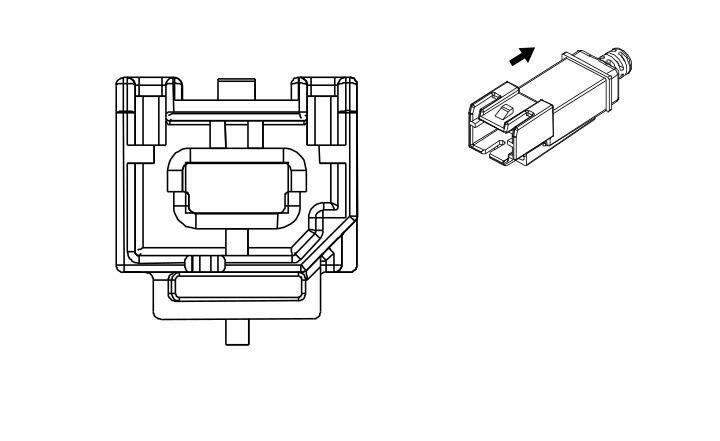

Connector Part Information
- Harness Type: Instrument Panel USB
- OEM Connector: 13578979
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 5-Way F 2.0 Mini-B USB Type (GY)
|
Connector Part Information
- Harness Type: Floor Console USB
- OEM Connector: 13578153
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 5-Way M 2.0 Mini-B USB Type (GN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| - |
- |
USB |
- |
I |
- |
USB Serial Data |
- |
- |
USB |
- |
I |
- |
