X221 Body Harness to Instrument Panel Harness (B9Q)
WARNING: This page is about a different car, the 2018 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

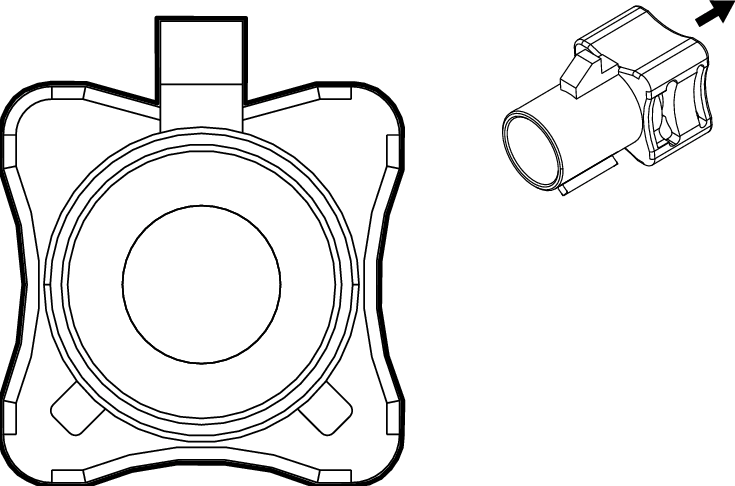

Connector Part Information
- Harness Type: Body Harness COAX
- OEM Connector: Not Available
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 1-Way F
|
Connector Part Information
- Harness Type: Instrument Panel COAX
- OEM Connector: 12784296
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 1-Way M Coax Type (CU)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| - |
- |
Coax |
- |
I |
- |
(XM +/-HD) Coaxial Antenna XM Signal |
- |
- |
Coax |
- |
I |
- |
