X127 Front Suspension Harness to Front Wheel Speed Sensor Harness (J64)
WARNING: This page is about a different car, the 2018 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

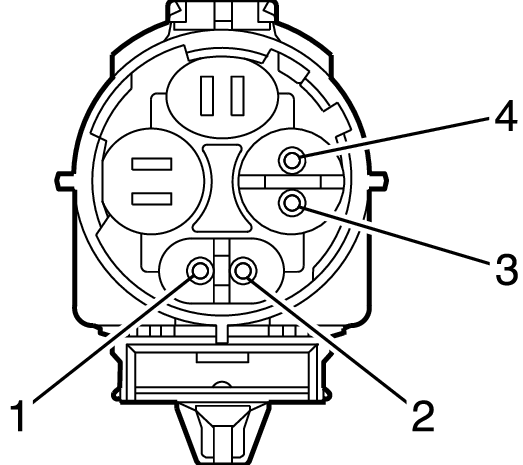

Connector Part Information
- Harness Type: Front Suspension
- OEM Connector: 24466107/24466108
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F (WH)
|

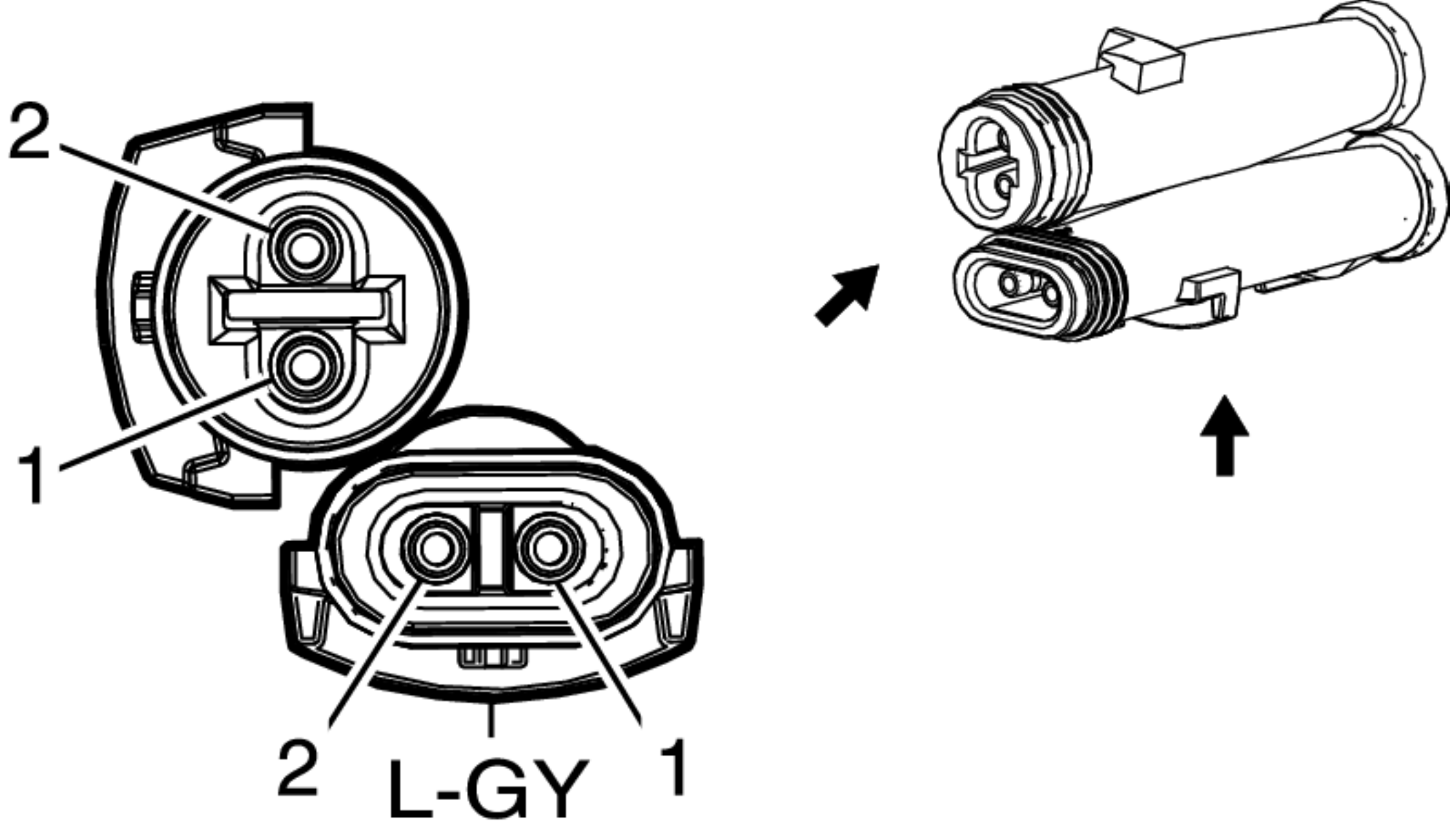

Connector Part Information
- Harness Type: Front Wheel Speed Sensor
- OEM Connector: 24466141
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way M (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-3 (GY) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.5 |
RD |
7065 |
I |
- |
Wheel Speed Sensor Control Right Front |
1 |
0.5 |
RD |
7065 |
II |
- |
| 2 |
0.5 |
YE |
872 |
I |
- |
Wheel Speed Sensor Signal Right Front |
2 |
0.5 |
YE |
872 |
II |
- |
| 3 |
0.5 |
BK |
1117 |
I |
- |
Right Front Damping Servo Control |
3 |
0.5 |
BK |
1117 |
II |
- |
| 4 |
0.5 |
WH |
1116 |
I |
F55 |
Right Front Damping Servo Control |
4 |
0.5 |
WH |
1116 |
II |
F55 |
