X408 Left Rear Suspension Harness to Body Harness

WARNING: This page is about a different car, the 2018 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY	Courtesy of GENERAL MOTORS COMPANY

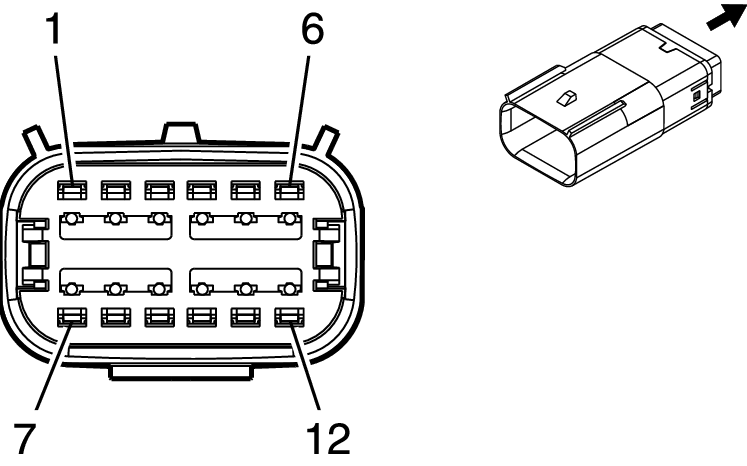

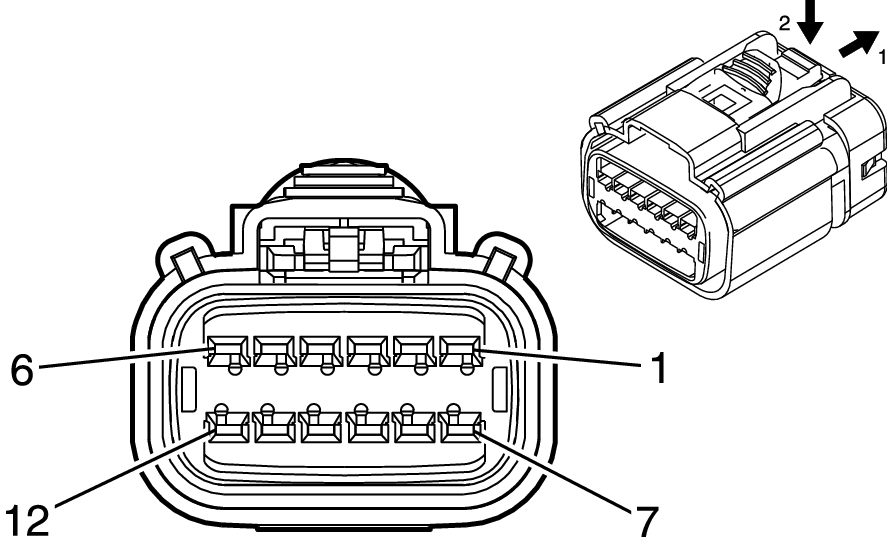

Connector Part Information Harness Type: Left Rear Suspension OEM Connector: 13591183 Service Connector: Service by Harness - See Part Catalog Description: 12-Way F 1.5 OCS Series, Sealed (BK)	Connector Part Information Harness Type: Body OEM Connector: 15521150 Service Connector: 19368219 Description: 12-Way M 1.5 OCS Series, Sealed (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	Not Required	J-35616-2A (GY)	No Tool Required	Not Required	Not Required	Not Required	Not Required
II	19119395	J-35616-3 (GY)	J-38125-217	Not Available	Not Available	Not Available	Not Available
III	19352417	J-35616-3 (GY)	J-38125-12A	Not Available	Not Available	Not Available	Not Available
IV	19352418	J-35616-3 (GY)	J-38125-12A	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	-	-	-	-	-	Not Occupied	1	-	-	-	-	-
2	0.5	WH	6106	I	-	High Speed GMLAN Serial Data (-) 2	2	0.5	WH	6106	III	-
3	0.5	WH	6106	I	-	High Speed GMLAN Serial Data (-) 2	3	0.5	WH	6106	II	-
4	0.5	WH	2501	I	-	High Speed GMLAN Serial Data (-) 1	4	0.5	WH	2501	III	-
5	0.5	WH/BU	5986	I	-	Serial Data Communication Enable	5	0.35	WH/BU	5986	III	-
6	1	BK	2950	I	-	Ground	6	1	BK	2950	II	-
7	-	-	-	-	-	Not Occupied	7	-	-	-	-	-
8	0.5	BU/YE	6105	I	-	High Speed GMLAN Serial Data (+) 2	8	0.5	BU/YE	6105	III	-
9	0.5	BU/YE	6105	I	-	High Speed GMLAN Serial Data (+) 2	9	0.5	BU/YE	6105	III	-
10	0.5	BU	2500	I	-	High Speed GMLAN Serial Data (+) 1	10	0.5	BU	2500	II	-
11	1	BK	2350	I	-	Ground	11	1	BK	2350	IV	-
12	1	RD/BN	4240	I	-	Battery Positive Voltage	12	1	RD/BN	4240	IV	-
