Turbocharger Wastegate Actuator Vacuum Tank Solenoid Valve Tube Replacement (LF3)

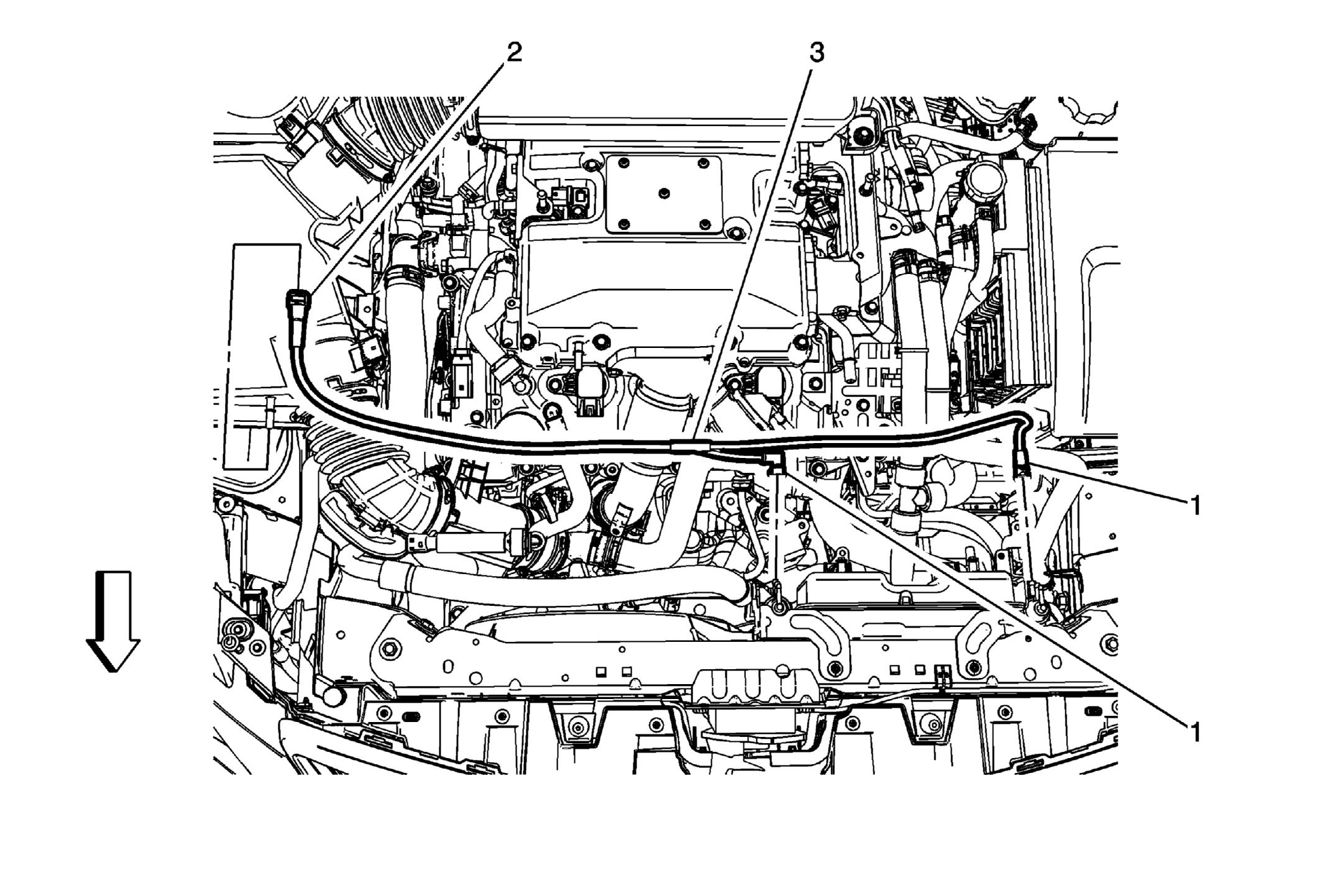

| Callout | Component Name |
|---|---|
|
CAUTION:
Preliminary Procedures Remove the front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement
.Refer to Solenoid Valve Caution . |
|
| 1 | Turbocharger Wastegate Actuator Vacuum Tank Solenoid Valve Tube Clamps (Qty: 2) |
| 2 | Turbocharger Wastegate Actuator Vacuum Tank Solenoid Valve Tube Quick Connect Fitting |
| 3 | Turbocharger Wastegate Actuator Vacuum Tank Solenoid Valve Tube Procedure Remove tie straps from turbocharger wastegate actuator vacuum tank solenoid valve tube. |
