Charge Air Bypass Valve Vacuum Tank Tube Replacement (Bundle Rear Section LF3)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name

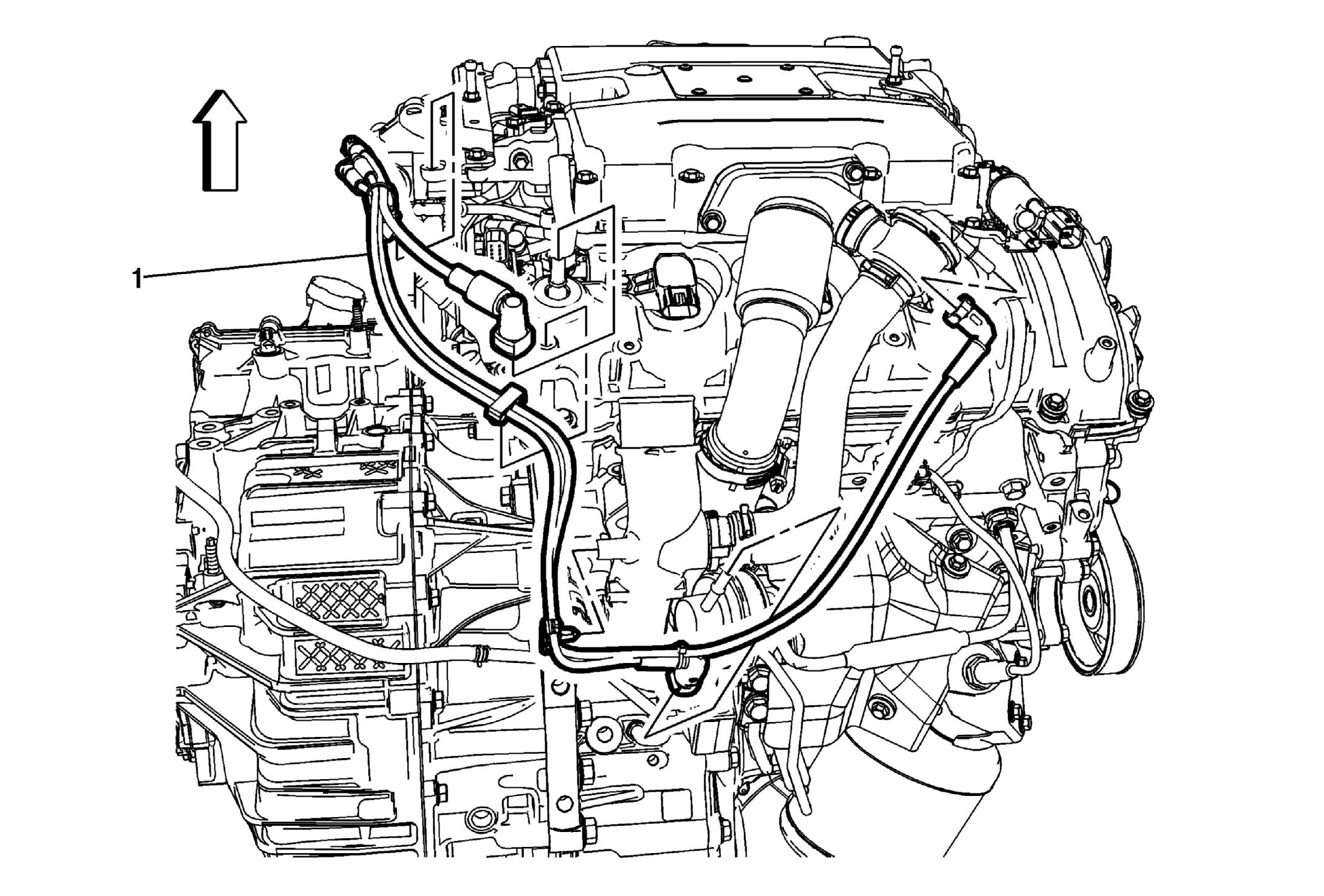

1	Charge Air Bypass Valve Vacuum Tank Tube Bundle Rear Section Procedure Disconnect the retainers and disconnect the quick connect fittings. Refer to Plastic Collar Quick Connect Fitting Service .

Callout

Component Name

Preliminary Procedures

Disconnect the charge air bypass valve vacuum tank tube bundle front section from charge air bypass valve vacuum tank tube bundle rear section. Refer to Plastic Collar Quick Connect Fitting Service .
Remove the drivetrain and front suspension frame. Refer to Drivetrain and Front Suspension Frame Replacement .

Charge Air Bypass Valve Vacuum Tank Tube Bundle Rear Section
Procedure
Disconnect the retainers and disconnect the quick connect fittings. Refer to Plastic Collar Quick Connect Fitting Service .
