Radiator Air Seal Replacement (LF3)

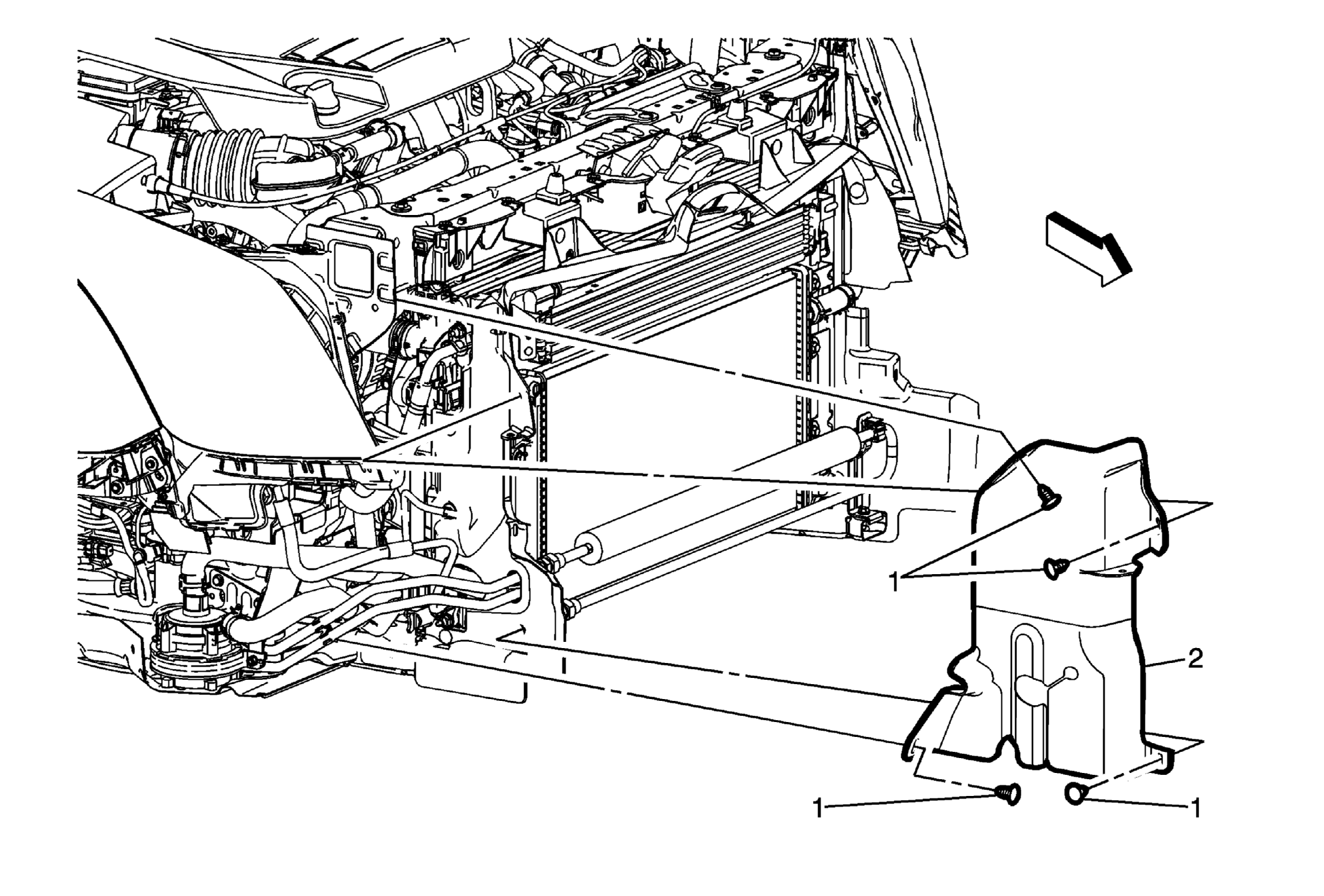

GM3299216Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove front bumper impact bar. Refer to Front Bumper Impact Bar Replacement .
1 Radiator Air Seal Retainer (Qty: 4)
2 Radiator Air Seal
